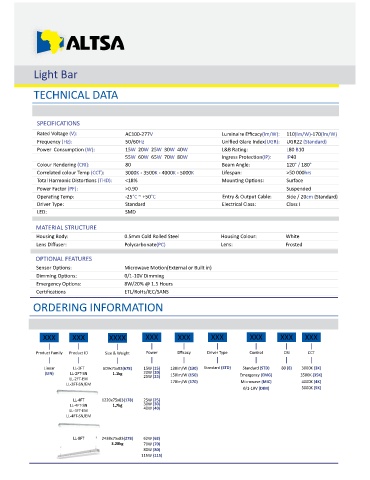

Page 124 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

Light Bar

TECHNICAL DATA

SPECIFICATIONS
Rated Voltage (V): AC100-277V Luminaire Efficacy(lm/W): 110(lm/W)-170(lm/W)
Frequency (Hz): 50/60Hz Unified Glare Index(UGR): UGR22 (Standard)
Power Consump on (W): 15W 20W 25W 30W 40W L&B Ra ng: L80 B10
55W 60W 65W 70W 80W Ingress Protec on(IP): IP40
Colour Rendering (CRI): 80 Beam Angle: 120° / 180°
Correlated colour Temp (CCT): 3000K - 3500K - 4000K - 5000K Lifespan: >50 000hrs
Total Harmonic Distor ons (THD): <18% Moun ng Op ons: Surface
Power Factor (PF): >0.90 Suspended
Opera ng Temp: -25°C ~ +50°C Entry & Output Cable: Side / 20cm (Standard)
Driver Type: Standard Electrical Class: Class I
LED: SMD

MATERIAL STRUCTURE
Housing Body: 0.5mm Cold Rolled Steel Housing Colour: White
Lens Diffuser: Polycarbonate(PC) Lens: Frosted
OPTIONAL FEATURES
Sensor Op ons: Microwave Mo on(External or Built in)
Dimming Op ons: 0/1-10V Dimming
Emergency Op ons: 8W/20% @ 1.5 Hours
Cer fica ons ETL/RoHs/IEC/SANS
ORDERING INFORMATION

XXX XXX XXXX XXX XXX XXX XXX XXX XXX

Product Family Product ID Size & Weight Power Efficacy Driver Type Control CRI CCT

Linear LL-2FT 609x75x83(678) 15W (15) 130lm/W (130) Standard (STD) Standard (STD) 80 (8) 3000K (3K)
(LIN) LL-2FT-SN 1.1kg 20W (20) 150lm/W (150) Emergency (EMG) 3500K (35K)
LL-2FT-EM 25W (25)
LL-2FT-SN/EM 170lm/W (170) Microwave (MIC) 4000K (4K)
0/1-10V (DIM) 5000K (5K)
LL-4FT 1220x75x83(178) 25W (25)
LL-4FT-SN 1,7kg 30W (30)
LL-4FT-EM 40W (40)
LL-4FT-SN/EM

LL-8FT 2438x75x83(278) 62W (62)
3.28kg 70W (70)
80W (80)
115W (115)
