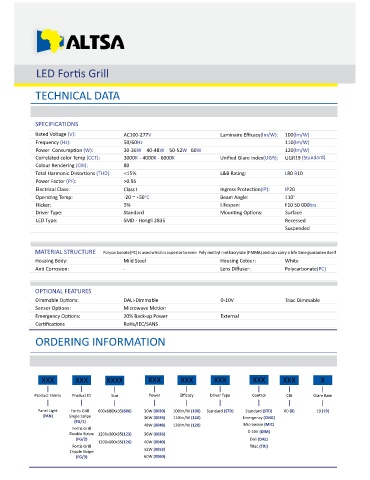

LED For s Grill

TECHNICAL DATA

SPECIFICATIONS
Rated Voltage (V): AC100-277V Luminaire Efficacy(lm/W): 100(lm/W)
Frequency (Hz): 50/60Hz 110(lm/W)
Power Consump on (W): 30-36W 40-48W 50-52W 60W 120(lm/W)
Correlated color Temp (CCT): 3000K - 4000K - 6000K Unified Glare Index(UGR):
Colour Rendering (CRI): 80
Total Harmonic Distor ons (THD): <15% L&B Ra ng: L80 B10
Power Factor (PF): >0.95
Electrical Class: Class I Ingress Protec on(IP): IP20
Opera ng Temp: -20 ~ +50°C Beam Angle: 110°
Flicker: 5% Lifespan: F10 50 000hrs
Driver Type: Standard Moun ng Op ons: Surface
LED Type: SMD - Hongli 2835 Recessed
Suspended

MATERIAL STRUCTURE Polycarbonate(PC)isusedwhichissuperiortoeven Poly methyl methacrylate (PMMA)and can carry a life me guaranteeitself
Housing Body: Mild Steel Housing Colour: White
An Corrosion: - Lens Diffuser: Polycarbonate(PC)

OPTIONAL FEATURES
Dimmable Op ons: DALI-Dimmable 0-10V Triac Dimmable
Sensor Op ons: Microwave Mo on
Emergency Op ons: 20% Back-up Power External
Cer fica ons RoHs/IEC/SANS

ORDERING INFORMATION

XXX XXX XXXX XXX XXX XXX XXX XXX X

Product Family Product ID Size Power Efficacy Driver Type Control CRI Glare Rate

Panel Light For s Grill 600x600Xx35(606) 30W (0030) 100lm/W (100) Standard (STD) Standard (STD) 80 (8) 19 (19)
(PAN) Single Stripe 36W (0036) 110lm/W (110) Emergency (EMG)
(FG/1) Microwave (MIC)
For s Grill 48W (0048) 120lm/W (120)
Double Stripe 1200x300x35(123) 36W (0036) 0-10V (DIM)
(FG/2) Dali (DAL)
1200x600x35(126) 40W (0040)
For s Grill Triac (TRI)
Tripple Stripe 52W (0052)
(FG/3) 60W (0060)
