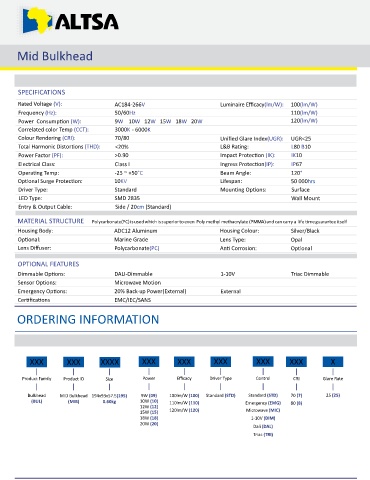

Page 337 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

Mid Bulkhead

SPECIFICATIONS

Rated Voltage (V): AC184-266V Luminaire Efficacy(lm/W): 100(lm/W)
Frequency (Hz): 50/60Hz 110(lm/W)
Power Consump on (W): 9W 10W 12W 15W 18W 20W 120(lm/W)
Correlated color Temp (CCT): 3000K - 6000K
Colour Rendering (CRI): 70/80 Unified Glare Index(UGR): UGR<25
Total Harmonic Distor ons (THD): <20% L&B Ra ng: L80 B10
Power Factor (PF): >0.90 Impact Protec on (IK): IK10
Electrical Class: Class I Ingress Protec on(IP): IP67
Opera ng Temp: -25 ~ +50°C Beam Angle: 120°
Op onal Surge Protec on: 10KV Lifespan: 50 000hrs
Driver Type: Standard Moun ng Op ons: Surface
LED Type: SMD 2835 Wall Mount
Entry & Output Cable: Side / 20cm (Standard)

MATERIAL STRUCTURE Polycarbonate(PC)isusedwhichissuperiortoeven Poly methyl methacrylate (PMMA)and can carry a life me guaranteeitself
Housing Body: ADC12 Aluminum Housing Colour: Silver/Black
Op onal: Marine Grade Lens Type: Opal
Lens Diffuser: Polycarbonate(PC) An Corrosion: Op onal

OPTIONAL FEATURES
Dimmable Op ons: DALI-Dimmable 1-10V Triac Dimmable
Sensor Op ons: Microwave Mo on
Emergency Op ons: 20% Back-up Power(External) External
Cer fica ons EMC/IEC/SANS

ORDERING INFORMATION

XXX XXX XXXX XXX XXX XXX XXX XXX X

Product Family Product ID Size Power Efficacy Driver Type Control CRI Glare Rate

Bulkhead MID Bulkhead 194x93x57.5(195) 9W (09) 100lm/W (100) Standard (STD) Standard (STD) 70 (7) 25 (25)
(BUL) (MIB) 0.60kg 10W (10) 110lm/W (110) Emergency (EMG) 80 (8)
12W (12)
15W (15) 120lm/W (120) Microwave (MIC)
18W (18) 1-10V (DIM)
20W (20) Dali (DAL)
Triac (TRI)
