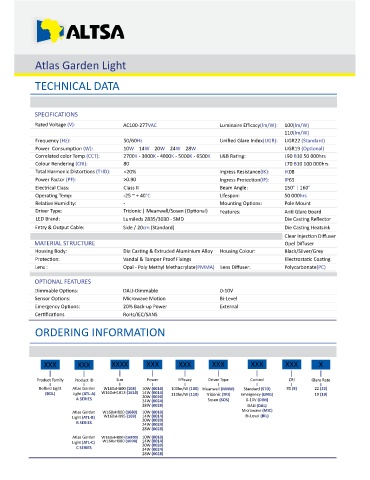

Page 418 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

Atlas Garden Light

TECHNICAL DATA

SPECIFICATIONS
Rated Voltage (V): AC100-277VAC Luminaire Efficacy(lm/W): 100(lm/W)
110(lm/W)
Frequency (Hz): 50/60Hz Unified Glare Index(UGR): UGR22 (Standard)
Power Consump on (W): 10W 14W 20W 24W 28W UGR19 (Op onal)
Correlated color Temp (CCT): 2700K - 3000K - 4000K - 5000K - 6500K L&B Ra ng: L90 B10 50 000hrs
Colour Rendering (CRI): 80 L70 B10 100 000hrs
Total Harmonic Distor ons (THD): <20% Ingress Resistance(IK): IK08
Power Factor (PF): >0.90 Ingress Protec on(IP): IP65
Electrical Class: Class II Beam Angle: 150° | 160°
Opera ng Temp: -25 ~ + 40°C Lifespan: 50 000hrs
Rela ve Humidity: - Moun ng Op ons: Pole Mount
Driver Type: Tridonic | Meanwell/Sosen (Op onal) Features: An Glare Board
LED Brand: Lumileds 2835/3030 - SMD Die Cas ng Reflector
Entry & Output Cable: Side / 20cm (Standard) Die Cas ng Heatsink
Clear Injec on Diffuser
MATERIAL STRUCTURE Opel Diffuser
Housing Body: Die Cas ng & Extruded Aluminium Alloy Housing Colour: Black/Silver/Grey
Protec on: Vandal & Tamper Proof Fixings Electrosta c Coa ng
Lens : Opal - Poly Methyl Methacrylate(PMMA) Lens Diffuser: Polycarbonate(PC)

OPTIONAL FEATURES
Dimmable Op ons: DALI-Dimmable 0-10V
Sensor Op ons: Microwave Mo on Bi-Level
Emergency Op ons: 20% Back-up Power External
Cer fica ons RoHs/IEC/SANS

ORDERING INFORMATION

XXX XXX XXXX XXX XXX XXX XXX XXX X

Product Family Product ID Size Power Efficacy Driver Type Control CRI Glare Rate
Bollard Light Atlas Garden W160xH800 (168) 10W (0010) 100lm/W (100) Meanwell (MNW) Standard (STD) 80 (8) 22 (22)
(BOL) Light (ATL-A) W160xH1013 (1610) 14W (0014) 110lm/W (110) Tridonic (TRI) Emergency (EMG) 19 (19)
A SERIES 20W (0020) Sosen (SOS) 0-10V (DIM)
24W (0024)
28W (0028) DALI (DAL)
Atlas Garden W160xH800 (1680) 10W (0010) Microwave (MIC)
Light (ATL-B) W160xH995 (169) 14W (0014) Bi-Level (BIL)
B SERIES 20W (0020)
24W (0024)
28W (0028)
Atlas Garden W160xH800 (16800) 10W (0010)
Light (ATL-C) W160xH980 (1698) 14W (0014)
C SERIES 20W (0020)
24W (0024)
28W (0028)
