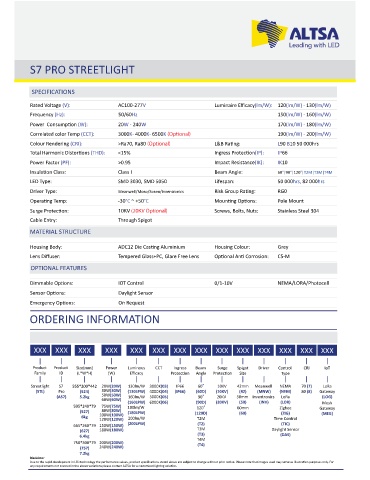

S7 PRO STREETLIGHT

SPECIFICATIONS

Rated Voltage (V): AC100-277V Luminaire Efficacy(lm/W): 120(lm/W) - 130(lm/W)
Frequency (Hz): 50/60Hz 150(lm/W) - 160(lm/W)
Power Consump on (W): 20W - 240W 170(lm/W) - 180(lm/W)
Correlated color Temp (CCT): 3000K- 4000K- 6500K 190(lm/W) - 200(lm/W)
Colour Rendering (CRI): >Ra70, Ra80 L&B Ra ng: L90 B10 50 000hrs
Total Harmonic Distor ons (THD): <15% Ingress Protec on(IP): IP66
Power Factor (PF): >0.95 Impact Resistance(IK): IK10
Insula on Class: Class I Beam Angle: 60°|90°|120°|T2M|T3M|T4M
LED Type: SMD 3030, SMD 5050 Lifespan: 50 000hrs, 82 000hrs
Driver Type: Meanwell/Moso/Sosen/Inventronics Risk Group Ra ng: RG0
Opera ng Temp: -30°C ~ +50°C Moun ng Op ons: Pole Mount
Surge Protec on: Screws, Bolts, Nuts: Stainless Steel 304
Cable Entry: Through Spigot
MATERIAL STRUCTURE

Housing Body: ADC12 Die Cas ng Aluminium Housing Colour: Grey
Lens Diffuser: Tempered Glass+PC, Glare Free Lens Op onal An Corrosion: C5-M
OPTIONAL FEATURES

Dimmable Op ons: IOT Control 0/1-10V NEMA/LORA/Photocell
Sensor Op ons: Daylight Sensor
Emergency Op ons: On Request
ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Spigot Driver Control CRI IoT
Family ID (L*W*H) (W) Efficacy Protec on Angle Protec on Size Type

Streetlight S7 555*200*442 20W(20W) 130lm/W 3000K(03) IP66 60° 10KV 42mm Meanwell NEMA 70 (7) LoRa
(STL) Pro (524) 30W(30W) (130LPW) 4000K(04) (IP66) (60D) (10KV) (42) (MNW) (NEM) 80 (8) Gateway
(AS7) 5.2kg 50W(50W) 160lm/W 5000K(05) 90° 20KV 50mm Inventronics LoRa (LOG)
60W(60W) (160LPW) 6000K(06) (90D) (20KV) (50) (INV) (LOR) Mesh
595*240*79 75W(75W) 180lm/W 120° 60mm Zigbee Gateway
(527) 80W(80W) (180LPW) (120D) (60) (ZIG) (MEG)
6kg 100W(100W) 200lm/W
120W(120W) T2M Time Control
665*260*79 150W(150W) (200LPW) (T2) (TIC)
(627) 180W(180W) T3M Daylight Sensor
(T3)
6.4kg T4M (DAS)
750*300*79 200W(200W) (T4)
(757) 240W(240W)
7.2kg
Disclaimer
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
