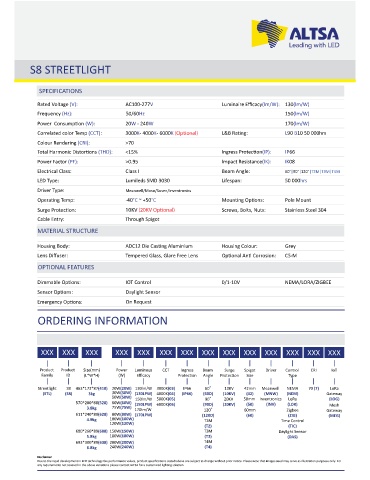

Page 431 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

S8 STREETLIGHT

SPECIFICATIONS

Rated Voltage (V): AC100-277V Luminaire Efficacy(lm/W): 130(lm/W)
Frequency (Hz): 50/60Hz 150(lm/W)
Power Consump on (W): 20W - 240W 170(lm/W)
Correlated color Temp (CCT): 3000K- 4000K- 6000K L&B Ra ng: L90 B10 50 000hrs
Colour Rendering (CRI): >70
Total Harmonic Distor ons (THD): <15% Ingress Protec on(IP): IP66
Power Factor (PF): >0.95 Impact Resistance(IK): IK08
Electrical Class: Class I Beam Angle: 60°|90°|120°|T2M|T3M|T4M
LED Type: Lumileds SMD 3030 Lifespan: 50 000hrs
Driver Type: Meanwell/Moso/Sosen/Inventronics
Opera ng Temp: -40°C ~ +50°C Moun ng Op ons: Pole Mount

Surge Protec on: Screws, Bolts, Nuts: Stainless Steel 304
Cable Entry: Through Spigot

MATERIAL STRUCTURE

Housing Body: ADC12 Die Cas ng Aluminium Housing Colour: Grey
Lens Diffuser: Tempered Glass, Glare Free Lens Op onal An Corrosion: C5-M
OPTIONAL FEATURES

Dimmable Op ons: IOT Control 0/1-10V NEMA/LORA/ZIGBEE
Sensor Op ons: Daylight Sensor
Emergency Op ons: On Request
ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Spigot Driver Control CRI IoT
Family ID (L*W*H) (W) Efficacy Protec on Angle Protec on Size Type

Streetlight S8 463*173*87(418) 20W(20W) 130lm/W 3000K(03) IP66 60° 10KV 42mm Meanwell NEMA 70 (7) LoRa
(STL) (S8) 3kg 30W(30W) (130LPW) 4000K(04) (IP66) (60D) (10KV) (42) (MNW) (NEM) Gateway
50W(50W) 150lm/W 5000K(05) 90° 20KV 50mm Inventronics LoRa (LOG)
570*200*88(528) 60W(60W) (150LPW) 6000K(06) (90D) (20KV) (50) (INV) (LOR) Mesh
3.8kg 75W(75W) 170lm/W 120° 60mm Zigbee Gateway
611*240*89(628) 80W(80W) (170LPW) (120D) (60) (ZIG) (MEG)
4.9kg 100W(100W) T2M Time Control
120W(120W)
(T2) (TIC)
680*260*89(688) 150W(150W) T3M Daylight Sensor
5.8kg 180W(180W) (T3) (DAS)
693*300*89(638) 200W(200W) T4M
6.8kg 240W(240W) (T4)
Disclaimer
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
