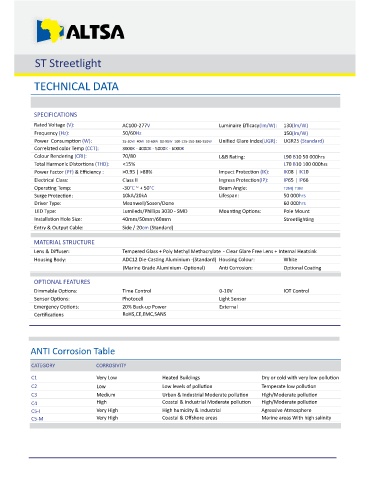

Page 458 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

ST Streetlight

TECHNICAL DATA

SPECIFICATIONS
Rated Voltage (V): AC100-277V Luminaire Efficacy(lm/W): 130(lm/W)
Frequency (Hz): 50/60Hz 150(lm/W)
Power Consump on (W): 25-30W 40W 50-60W 80-90W 100-125-150-180-250W Unified Glare Index(UGR): UGR25 (Standard)
Correlated color Temp (CCT): 3000K - 4000K - 5000K - 6000K
Colour Rendering (CRI): 70/80 L&B Ra ng: L90 B10 50 000hrs
Total Harmonic Distor ons (THD): <15% L70 B10 100 000hrs
Power Factor (PF) & Efficiency : >0.95 | >88% Impact Protec on (IK): IK08 | IK10
Electrical Class: Class II Ingress Protec on(IP): IP65 | IP66
Opera ng Temp: -30°C ~ + 50°C Beam Angle: T2M| T3M
Surge Protec on: 10kA/20kA Lifespan: 50 000hrs
Driver Type: Meanwell/Sosen/Done 60 000hrs
LED Type: Lumileds/Phillips 3030 - SMD Moun ng Op ons: Pole Mount
Installa on Hole Size: Streetligh ng
Entry & Output Cable: Side / 20cm (Standard)

MATERIAL STRUCTURE
Lens & Diffuser: Tempered Glass + Poly Methyl Methacrylate - Clear Glare Free Lens + Internal Heatsink
Housing Body: ADC12 Die-Cas ng Aluminium -(Standard) Housing Colour: White
(Marine Grade Aluminium -Op onal) An Corrosion: Op onal Coa ng

OPTIONAL FEATURES
Dimmable Op ons: Time Control 0-10V IOT Control
Sensor Op ons: Photocell Light Sensor
Emergency Op ons: 20% Back-up Power External
Cer fica ons RoHS,CE,EMC,SANS

ANTI Corrosion Table

CATEGORY CORROSIVITY
C1 Very Low Heated Buildings Dry or cold with very low pollu on
C2 Low Low levels of pollu on Temperate low pollu on
C3 Medium Urban & Industrial Moderate pollu on High/Moderate pollu on
C4 High Coastal & Industrial Moderate pollu on High/Moderate pollu on
C5-I Very High High humidity & Industrial Agressive Atmosphere
C5-M Very High Coastal & Offshore areas Marine areas With high salinity
