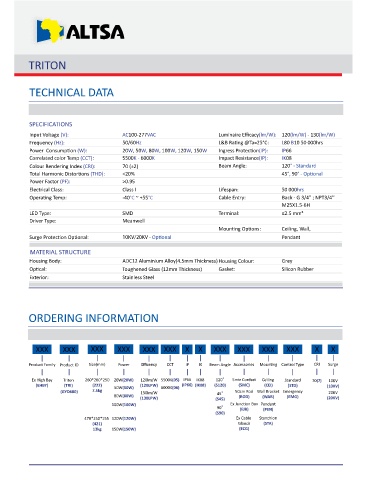

TRITON

TECHNICAL DATA

SPECIFICATIONS
Input Voltage (V): AC100-277VAC Luminaire Efficacy(lm/W): 120(lm/W) - 130(lm/W)
Frequency (Hz): 50/60Hz L&B Ra ng @Ta=25°C: L80 B10 50 000hrs
Power Consump on (W): 20W, 50W, 80W, 100W, 120W, 150W Ingress Protec on(IP): IP66
Correlated color Temp (CCT): 5500K - 6000K Impact Resistance(IP): IK08
Colour Rendering Index (CRI): 70 (±2) Beam Angle: 120° - Standard
Total Harmonic Distor ons (THD): <20% 45°, 90° - Op onal
Power Factor (PF): >0.95
Electrical Class: Class I Lifespan: 50 000hrs
Opera ng Temp: -40°C ~ +55°C Cable Entry: Back - G 3/4” ; NPT3/4’’
M25X1.5-6H
LED Type: SMD Terminal: ≤2.5 mm²
Driver Type: Meanwell
Moun ng Op ons: Ceiling, Wall,
Surge Protec on Op onal: Op onal Pendant

MATERIAL STRUCTURE
Housing Body: ADC12 Aluminium Alloy(4.5mm Thickness) Housing Colour: Grey
Op cal: Toughened Glass (12mm Thickness) Gasket: Silicon Rubber
Exterior: Stainless Steel

ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX X X XXX XXX XXX XXX X X

Product Family Product ID Size(mm) Power Efficency CCT IP IK Beam Angle Accessories Moun ng Control Type CRI Surge

Ex High Bay Triton 260*260*250 20W(20W) 120lm/W 5500K(05) IP66 IK08 120° 5mtr Cordset Ceiling Standard 70(7) 10KV
(EHBY) (TRI) (222) 50W(50W) (120LPW) 6000K(06) (IP66) (IK08) (S120) (5MC) (CEI) (STD) (10KV)
(GYD680) 7.5kg 130lm/W 45° 50cm Rod Wall Bracket Emergency 20KV
80W(80W) (ROD) (WAB) (EMG)
(130LPW) (S45) (20KV)
100W(100W) Ex Junc on Box Pendant
90° (EJB) (PEN)
(S90)
470*250*155 120W(120W) Ex Cable Stanchion
(421) Glands (STA)
13kg 150W(150W) (ECG)
