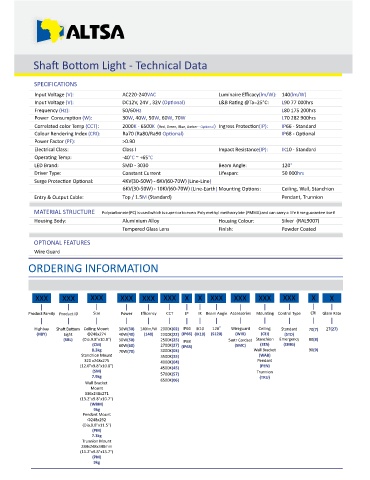

Sha Bo om Light - Technical Data

SPECIFICATIONS

Input Voltage (V): AC220-240VAC Luminaire Efficacy(lm/W): 140(lm/W)
Input Voltage (V): DC12V, 24V , 32V (Op onal) L&B Ra ng @Ta=25°C: L90 77 000hrs
Frequency (Hz): 50/60Hz L80 175 200hrs
Power Consump on (W): 30W, 40W, 50W, 60W, 70W L70 282 900hrs
Correlated color Temp (CCT): 2000K - 6500K (Red, Green, Blue, Amber - Op onal) Ingress Protec on(IP): IP66 - Standard
Colour Rendering Index (CRI): Ra70 (Ra80/Ra90 Op onal) IP68 - Op onal
Power Factor (PF): >0.90
Electrical Class: Class I Impact Resistance(IP): IK10 - Standard
Opera ng Temp: -40°C ~ +65°C
LED Brand: SMD - 3030 Beam Angle: 120°
Driver Type: Constant Current Lifespan: 50 000hrs
Surge Protec on Op onal: (Line-Line)
(Line-Earth) Moun ng Op ons: Ceiling, Wall, Stanchion
Entry & Output Cable: Top / 1.5M (Standard) Pendant, Trunnion

MATERIAL STRUCTURE Polycarbonate(PC)isusedwhichissuperiortoeven Poly methyl methacrylate (PMMA)and can carry a life me guaranteeitself
Housing Body: Aluminium Alloy Housing Colour: Silver (RAL9007)
Tempered Glass Lens Finish: Powder Coated

OPTIONAL FEATURES
Wire Guard

ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX X X XXX XXX XXX XXX X X

Product Family Product ID Size Power Efficency CCT IP IK Beam Angle Accessories Moun ng Control Type CRI Glare Rate

Highbay Sha Bo om Ceiling Mount 30W(30) 140lm/W 2000K(02) IP66 IK10 120° Wireguard Ceiling Standard 70(7) 27(27)
(HBY) Light Φ248x274 40W(40) (140) 2200K(22) (IP66) (IK10) (S120) (WIR) (CEI) (STD)
(SBL) (Dia.9.8"x10.8") 50W(50) 2500K(25) IP68 5mtr Cordset Stanchion Emergency 80(8)
(CM) 60W(60) 2700K(27) (IP68) (5MC) (STA) (EMG)
8.3kg 70W(70) 3000K(03) Wall Bracket 90(9)
Stanchion Mount 3500K(35) (WAB)
320 x248x275 4000K(04) Pendant
(12.6"x9.8“x10.8”) 4500K(45) (PEN)
(SM) 5700K(57) Trunnion
7.9kg (TRU)
Wall Bracket 6500K(06)
Mount
336x248x271
(13.2"x9.8"x10.7")
(WBM)
9kg
Pendant Mount
Φ248x292
(Dia.9.8"x11.5")
(PM)
7.3kg
Trunnion Mount
284x248x348mm
(11.2"x9.8"x13.7")
(PM)
9kg
