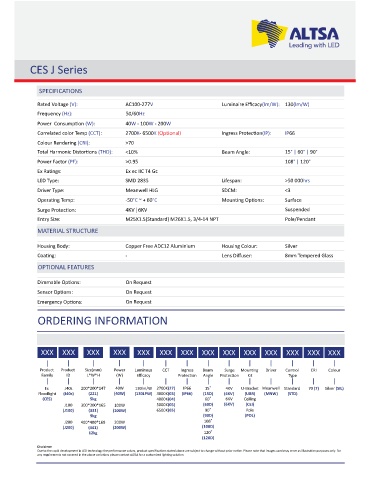

Page 544 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

CES J Series

SPECIFICATIONS

Rated Voltage (V): AC100-277V Luminaire Efficacy(lm/W): 130(lm/W)
Frequency (Hz): 50/60Hz
Power Consump on (W): 40W - 100W - 200W
Correlated color Temp (CCT): 2700K- 6500K Ingress Protec on(IP): IP66
Colour Rendering (CRI): >70
Total Harmonic Distor ons (THD): <10% Beam Angle: 15° | 60° | 90°
Power Factor (PF): >0.95 108° | 120°
Ex Ra ngs: Ex ec IIC T4 Gc
LED Type: SMD 2835 Lifespan: >50 000hrs
Driver Type: Meanwell HLG SDCM: <3
Opera ng Temp: -50°C ~ + 60°C Moun ng Op ons: Surface

Surge Protec on: Suspended
Entry Size: M25X1.5(Standard) M26X1.5, 3/4-14 NPT Pole/Pendant

MATERIAL STRUCTURE

Housing Body: Copper Free ADC12 Aluminium Housing Colour: Silver
Coa ng: - Lens Diffuser: 8mm Tempered Glass
OPTIONAL FEATURES

Dimmable Op ons: On Request
Sensor Op ons: On Request
Emergency Op ons: On Request
ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Moun ng Driver Control CRI Colour
Family ID L*W*H (W) Efficacy Protec on Angle Protec on Kit Type

Ex J40s 200*200*147 40W 130lm/W 2700K(27) IP66 15° 4KV U-Bracket Meanwell Standard 70 (7) Silver (SIL)
Floodlight (J40s) (221) (40W) (130LPW) 3000K(03) (IP66) (15D) (4KV) (UBR) (MNW) (STD)
(CES) 5kg 4000K(04) 60° 6KV Ceiling
J100 300*300*165 100W 5000K(05) (60D) (6KV) (CEI)
(J100) (331) (100W) 6500K(65) 90° Pole
9kg (90D) (POL)
J200 400*400*169 200W 108°
(J200) (441) (200W) (108D)
12kg 120°
(120D)
Disclaimer
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
