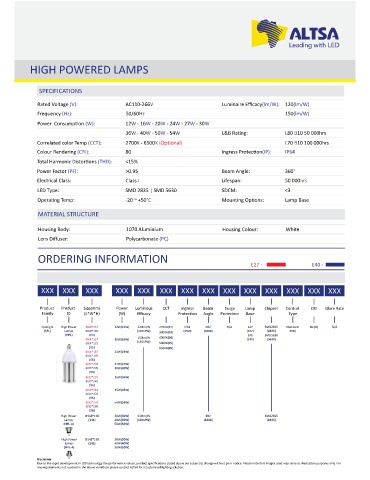

Page 100 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

HIGH POWERED LAMPS

SPECIFICATIONS

Rated Voltage (V): AC110-266V Luminaire Efficacy(lm/W): 120(lm/W)
Frequency (Hz): 50/60Hz 150(lm/W)
Power Consump on (W): 12W - 16W - 20W - 24W - 27W - 30W
36W - 40W - 50W - 54W L&B Ra ng: L80 B10 50 000hrs
Correlated color Temp (CCT): 2700K - 6500K L70 B10 100 000hrs
Colour Rendering (CRI): 80 Ingress Protec on(IP): IP64
Total Harmonic Distor ons (THD): <15%
Power Factor (PF): >0.95 Beam Angle: 360°
Electrical Class: Class I Lifespan: 50 000hrs
LED Type: SMD 2835 | SMD 5630 SDCM: <3
Opera ng Temp: -20 ~ +50°C Moun ng Op ons: Lamp Base

MATERIAL STRUCTURE

Housing Body: 1070 Aluminium Housing Colour: White
Lens Diffuser: Polycarbonate (PC)

ORDERING INFORMATION
E27 - E40 -

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Lamp Chipset Control CRI Glare Rate
Family ID (L*W*H) (W) Efficacy Protec on Angle Protec on Base Type

Spotlight High Power Φ64*157 12W(12W) 120lm/W 2700K(27) IP64 360° N/A E27 SMD2835 Standard 80 (8) N/A
(SPL) Lamps Φ64*165 (120LPW) 3000K(03) (IP64) (360D) (E27) (2835) STD)
(HPL) (64) E40 SMD5630
Φ64*167 16W(16W) 150lm/W 4000K(04) (E40) (5630)
Φ64*175 (150LPW) 5000K(05)
(65) 6500K(65)
Φ64*187 24W(24W)
Φ64*195
(66)
Φ93*203 27W(27W)
Φ93*209 30W(30W)
(93)
Φ93*233 36W(36W)
Φ93*240
(94)
Φ93*264 45W(45W)
Φ93*270
(95)
Φ93*274 54W(54W)
Φ93*280
(96)
High Power Φ148*198 30W(30W) 130lm/W 180° SMD2835
Lamps (141) 40W(40W) (130LPW) (180D) (2835)
(HPL-A) 50W(50W)
High Power Φ148*198 30W(30W)
Lamps (141) 40W(40W)
(HPL-A) 50W(50W)
Disclaimer
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
