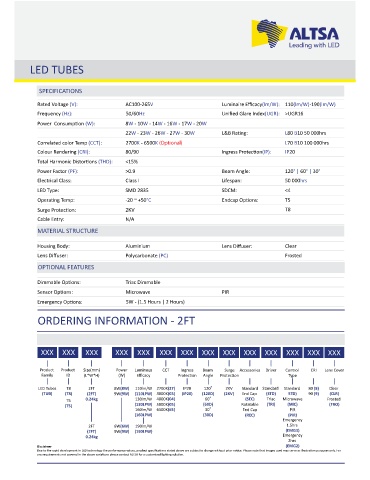

Page 96 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

LED TUBES

SPECIFICATIONS

Rated Voltage (V): AC100-265V Luminaire Efficacy(lm/W): 110(lm/W)-190(lm/W)
Frequency (Hz): 50/60Hz Unified Glare Index(UGR): >UGR16
Power Consump on (W): 8W - 10W - 14W - 16W - 17W - 20W
22W - 23W - 26W - 27W - 30W L&B Ra ng: L80 B10 50 000hrs
Correlated color Temp (CCT): 2700K - 6500K L70 B10 100 000hrs
Colour Rendering (CRI): 80/90 Ingress Protec on(IP): IP20
Total Harmonic Distor ons (THD): <15%
Power Factor (PF): >0.9 Beam Angle: 120° | 60° | 30°
Electrical Class: Class I Lifespan: 50 000hrs
LED Type: SMD 2835 SDCM: <4
Opera ng Temp: -20 ~ +50°C Endcap Op ons: T5

Surge Protec on: T8
Cable Entry: N/A

MATERIAL STRUCTURE

Housing Body: Aluminium Lens Diffuser: Clear
Lens Diffuser: Polycarbonate (PC) Frosted
OPTIONAL FEATURES

Dimmable Op ons: Triac Dimmable
Sensor Op ons: Microwave PIR
Emergency Op ons: 5W - (1.5 Hours | 2 Hours)
ORDERING INFORMATION - 2FT

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Accessories Driver Control CRI Lens Cover
Family ID (L*W*H) (W) Efficacy Protec on Angle Protec on Type

LED Tubes T8 2FT 8W(8W) 110lm/W 2700K(27) IP20 120° 2KV Standard Standard Standard 80 (8) Clear
(TUB) (T8) (2FT) 9W(9W) (110LPW) 3000K(03) (IP20) (120D) (2KV) End Cap (STD) STD) 90 (9) (CLR)
T5 0.24kg 130lm/W 4000K(04) 60° (SEC) Triac Microwave Frosted
(T5) (130LPW) 5000K(05) (60D) Rotatable (TRI) (MIC) (FRO)
160lm/W 6500K(65) 30° End Cap PIR
(160LPW) (30D) (REC) (PIR)
Emergency
2FT 6W(6W) 190lm/W 1.5hrs
(2FT) 9W(9W) (190LPW) (EMG1)
0.24kg Emergency
2hrs
Disclaimer (EMG2)
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
