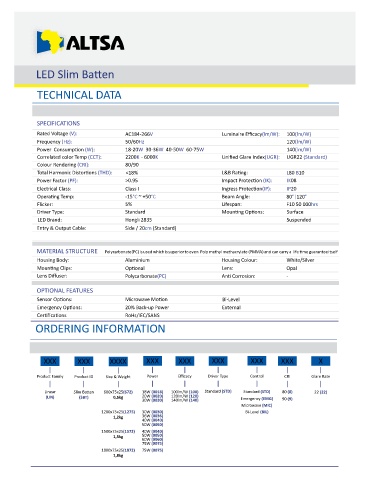

LED Slim Ba en

TECHNICAL DATA

SPECIFICATIONS
Rated Voltage (V): AC184-266V Luminaire Efficacy(lm/W): 100(lm/W)
Frequency (Hz): 50/60Hz 120(lm/W)
Power Consump on (W): 18-20W 30-36W 40-50W 60-75W 140(lm/W)
Correlated color Temp (CCT): 2200K - 6000K Unified Glare Index(UGR): UGR22 (Standard)
Colour Rendering (CRI): 80/90
Total Harmonic Distor ons (THD): <18% L&B Ra ng: L80 B10
Power Factor (PF): >0.95 Impact Protec on (IK): IK08
Electrical Class: Class I Ingress Protec on(IP): IP20
Opera ng Temp: -15°C ~ +50°C Beam Angle: 80°|120°
Flicker: 5% Lifespan: F10 50 000hrs
Driver Type: Standard Moun ng Op ons: Surface
LED Brand: Hongli 2835 Suspended
Entry & Output Cable: Side / 20cm (Standard)

MATERIAL STRUCTURE Polycarbonate(PC)isusedwhichissuperiortoeven Poly methyl methacrylate (PMMA)and can carry a life me guaranteeitself
Housing Body: Aluminium Housing Colour: White/Silver
Moun ng Clips: Op onal Lens: Opal
Lens Diffuser: Polycarbonate(PC) An Corrosion: -

OPTIONAL FEATURES
Sensor Op ons: Microwave Mo on Bi-Level
Emergency Op ons: 20% Back-up Power External
Cer fica ons RoHs/IEC/SANS
ORDERING INFORMATION

XXX XXX XXXX XXX XXX XXX XXX XXX X

Product Family Product ID Size & Weight Power Efficacy Driver Type Control CRI Glare Rate

Linear Slim Ba en 600x75x25(672) 18W (0018) 100lm/W (100) Standard (STD) Standard (STD) 80 (8) 22 (22)
(LIN) (SBT) 0,5kg 20W (0020) 120lm/W (120) Emergency (EMG) 90 (9)
30W (0030) 140lm/W (140)
Microwave (MIC)
1200x75x25(1275) 30W (0030) Bi-Level (BIL)
1,2kg 36W (0036)
40W (0040)
50W (0050)
1500x75x25(1572) 40W (0040)
1,5kg 50W (0050)
60W (0060)
75W (0075)
1800x75x25(1872) 75W (0075)
1,8kg
