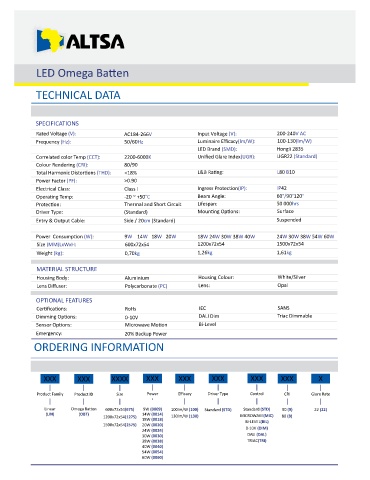

LED Omega Ba en

TECHNICAL DATA

SPECIFICATIONS
Rated Voltage (V): AC184-266V Input Voltage (V): 200-240V AC
Frequency (Hz): 50/60Hz Luminaire Efficacy(lm/W): 100-130(lm/W)
LED Brand (SMD): Hongli 2835
Correlated color Temp (CCT): 2200-6000K Unified Glare Index(UGR): UGR22 (Standard)
Colour Rendering (CRI): 80/90
Total Harmonic Distor ons (THD): <18% L&B Ra ng: L80 B10
Power Factor (PF): >0.90
Electrical Class: Class I Ingress Protec on(IP): IP42
Opera ng Temp: -20 ~ +50°C Beam Angle: 60°/90°120°
Protec on: Thermal and Short Circuit Lifespan: 50 000hrs
Driver Type: (Standard) Moun ng Op ons: Surface
Entry & Output Cable: Side / 20cm (Standard) Suspended

Power Consump on (W): 9W 14W 18W 20W 18W 24W 30W 38W 40W 24W 30W 38W 54W 60W
Size (MM)LxWxH: 600x72x54 1200x72x54 1500x72x54
Weight (kg): 0,70kg 1,26kg 1,61kg

MATERIAL STRUCTURE
Housing Body: Aluminium Housing Colour: White/Silver
Lens Diffuser: Polycarbonate (PC) Lens: Opal

OPTIONAL FEATURES
Cer fica ons: RoHs IEC SANS
Dimming Op ons: 0-10V DALI Dim Triac Dimmable
Sensor Op ons: Microwave Mo on Bi-Level
Emergency: 20% Backup Power
ORDERING INFORMATION

XXX XXX XXXX XXX XXX XXX XXX XXX X

Product Family Product ID Size Power Efficacy Driver Type Control CRI Glare Rate

Linear Omega Ba en 600x72x54(675) 9W (0009) 100lm/W (100) Standard (STD) Standard (STD) 90 (9) 22 (22)
(LIN) (OBT) 14W (0014) MICROWAVE(MIC)
1200x72x54(1275) 130lm/W (130) 80 (8)
18W (0018) BI-LEVEL(BIL)
1500x72x54(1575) 20W (0020)
24W (0024) 0-10V (DIM)
30W (0030) DALI (DAL)
38W (0038) TRIAC(TRI)
40W (0040)
54W (0054)
60W (0060)
