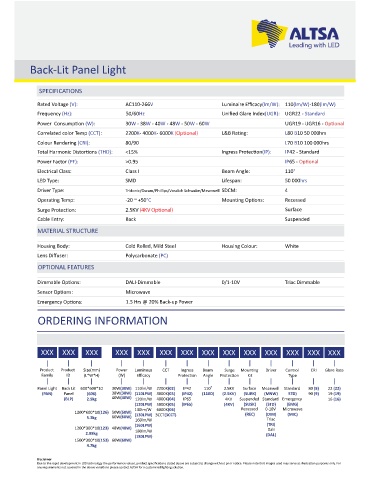

Page 13 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

Back-Lit Panel Light

SPECIFICATIONS

Rated Voltage (V): AC110-266V Luminaire Efficacy(lm/W): 110(lm/W)-180(lm/W)
Frequency (Hz): 50/60Hz Unified Glare Index(UGR): UGR22 - Standard
Power Consump on (W): 30W - 38W - 40W - 48W - 50W - 60W UGR19 - UGR16 - Op onal
Correlated color Temp (CCT): 2200K- 4000K- 6000K L&B Ra ng: L80 B10 50 000hrs
Colour Rendering (CRI): 80/90 L70 B10 100 000hrs
Total Harmonic Distor ons (THD): <15% Ingress Protec on(IP): IP42 - Standard
Power Factor (PF): >0.95 IP65 - Op onal
Electrical Class: Class I Beam Angle: 110°
LED Type: SMD Lifespan: 50 000hrs
Driver Type: Tridonic/Osram/Phillips/Vossloh Schwabe/Meanwell SDCM: 4
Opera ng Temp: -20 ~ +50°C Moun ng Op ons: Recessed

Surge Protec on: Surface
Cable Entry: Back Suspended

MATERIAL STRUCTURE

Housing Body: Cold Rolled, Mild Steel Housing Colour: White
Lens Diffuser: Polycarbonate (PC)
OPTIONAL FEATURES

Dimmable Op ons: DALI-Dimmable 0/1-10V Triac Dimmable
Sensor Op ons: Microwave
Emergency Op ons: 1.5 Hrs @ 20% Back-up Power
ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Moun ng Driver Control CRI Glare Rate
Family ID (L*W*H) (W) Efficacy Protec on Angle Protec on Kit Type

Panel Light Back Lit 600*600*10 30W(30W) 110lm/W 2200K(02) IP42 110° 2.5KV Surface Meanwell Standard 80 (8) 22 (22)
(PAN) Panel (606) 38W(38W) (110LPW) 3000K(03) (IP42) (110D) (2.5KV) (SURK) (MNW) STD) 90 (9) 19 (19)
(BLP) 2.5kg 40W(40W) 120lm/W 4000K(04) IP65 4KV Suspended Standard Emergency 16 (16)
(120LPW) 5000K(05) (IP65) (4KV) (SUSK) (STD) (EMG)
130lm/W 6000K(06) Recessed 0-10V Microwave
1200*600*10(126) 50W(50W) (130LPW) 3CCT(3CCT) (REC) (DIM) (MIC)
5.3kg 60W(60W)
160lm/W Triac
(160LPW) (TRI)
1200*300*10(123) 48W(48W) Dali
2.88kg 180lm/W
(180LPW) (DAL)
1500*300*10(153) 60W(60W)
4.7kg
Disclaimer
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
