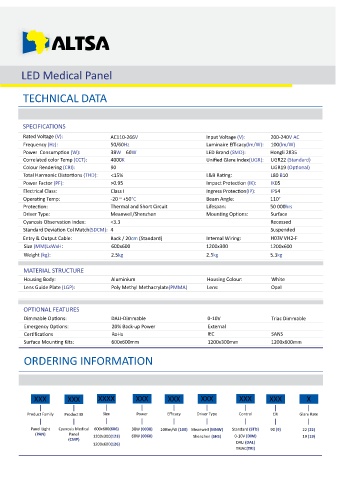

LED Medical Panel

TECHNICAL DATA

SPECIFICATIONS
Rated Voltage (V): AC110-266V Input Voltage (V): 200-240V AC
Frequency (Hz): 50/60Hz Luminaire Efficacy(lm/W): 100(lm/W)
Power Consump on (W): 38W 60W LED Brand (SMD): Hongli 2835
Correlated color Temp (CCT): 4000K Unified Glare Index(UGR): UGR22 (Standard)
Colour Rendering (CRI): 90 UGR19 (Op onal)
Total Harmonic Distor ons (THD): <15% L&B Ra ng: L80 B10
Power Factor (PF): >0.95 Impact Protec on (IK): IK05
Electrical Class: Class I Ingress Protec on(IP): IP54
Opera ng Temp: -20 ~ +50°C Beam Angle: 110°
Protec on: Thermal and Short Circuit Lifespan: 50 000hrs
Driver Type: Meanwell/Shenzhen Moun ng Op ons: Surface
Cyanosis Observa on Index: <3.3 Recessed
Standard Devia on Col Match(SDCM): 4 Suspended
Entry & Output Cable: Back / 20cm (Standard) Internal Wiring:
Size (MM)LxWxH: 600x600 1200x300 1200x600
Weight (kg): 2.5kg 2.5kg 5.3kg

MATERIAL STRUCTURE
Housing Body: Aluminium Housing Colour: White
Lens Guide Plate (LGP): Poly Methyl Methacrylate(PMMA) Lens: Opal

OPTIONAL FEATURES
Dimmable Op ons: DALI-Dimmable 0-10V Triac Dimmable
Emergency Op ons: 20% Back-up Power External
Cer fica ons RoHs IEC SANS
Surface Moun ng Kits: 600x600mm 1200x300mm 1200x600mm

ORDERING INFORMATION

XXX XXX XXXX XXX XXX XXX XXX XXX X

Product Family Product ID Size Power Efficacy Driver Type Control CRI Glare Rate

Panel Light Cyanosis Medical 600x600(606) 38W (0038) 100lm/W (100) Meanwell (MNW) Standard (STD) 90 (9) 22 (22)
(PAN) Panel 1200x300(123) 60W (0060) Shenzhen (SHS) 0-10V (DIM) 19 (19)
(CMP)
1200x600(126) DALI (DAL)
TRIAC(TRI)
