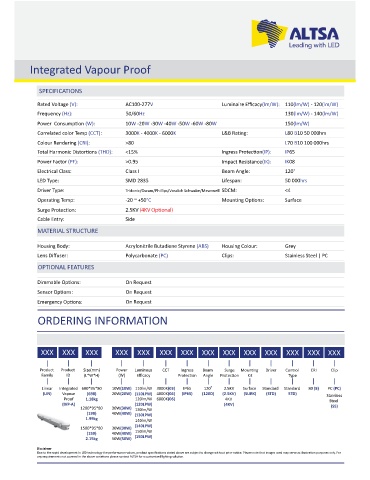

Page 142 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

Integrated Vapour Proof

SPECIFICATIONS

Rated Voltage (V): AC100-277V Luminaire Efficacy(lm/W): 110(lm/W) - 120(lm/W)
Frequency (Hz): 50/60Hz 130(lm/W) - 140(lm/W)
Power Consump on (W): 10W -20W -30W -40W -50W -60W -80W 150(lm/W)
Correlated color Temp (CCT): 3000K - 4000K - 6000K L&B Ra ng: L80 B10 50 000hrs
Colour Rendering (CRI): >80 L70 B10 100 000hrs
Total Harmonic Distor ons (THD): <15% Ingress Protec on(IP): IP65
Power Factor (PF): >0.95 Impact Resistance(IK): IK08
Electrical Class: Class I Beam Angle: 120°
LED Type: SMD 2835 Lifespan: 50 000hrs
Driver Type: Tridonic/Osram/Phillips/Vossloh Schwabe/Meanwell SDCM: <4
Opera ng Temp: -20 ~ +50°C Moun ng Op ons: Surface

Surge Protec on:
Cable Entry: Side

MATERIAL STRUCTURE

Housing Body: Acrylonitrile Butadiene Styrene (ABS) Housing Colour: Grey
Lens Diffuser: Polycarbonate (PC) Clips: Stainless Steel | PC
OPTIONAL FEATURES

Dimmable Op ons: On Request
Sensor Op ons: On Request
Emergency Op ons: On Request
ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Moun ng Driver Control CRI Clip
Family ID (L*W*H) (W) Efficacy Protec on Angle Protec on Kit Type

Linear Integrated 600*95*80 10W(10W) 110lm/W 3000K(03) IP65 120° 2.5KV Surface Standard Standard 80 (8) PC (PC)
(LIN) Vapour (698) 20W(20W) (110LPW) 4000K(04) (IP65) (120D) (2.5KV) (SURK) (STD) STD) Stainless
Proof 1.18kg 120lm/W 6000K(06) 4KV Steel
(IVP-A) (120LPW) (4KV) (SS)
1200*95*80 30W(30W) 130lm/W
(198) 40W(40W) (130LPW)
1.99kg 140lm/W
(140LPW)
1500*95*80 30W(30W)
(159) 40W(40W) 150lm/W
2.15kg 50W(50W) (150LPW)
Disclaimer
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
