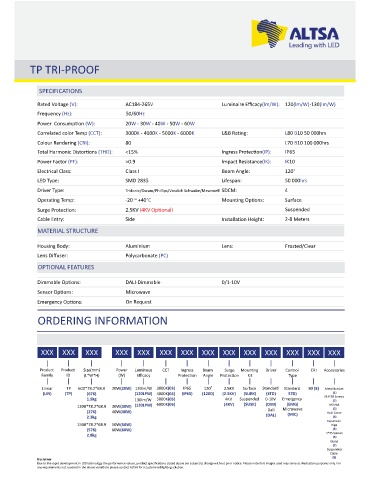

Page 147 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

TP TRI-PROOF

SPECIFICATIONS

Rated Voltage (V): AC184-265V Luminaire Efficacy(lm/W): 120(lm/W)-130(lm/W)
Frequency (Hz): 50/60Hz
Power Consump on (W): 20W - 30W - 40W - 50W - 60W
Correlated color Temp (CCT): 3000K - 4000K - 5000K - 6000K L&B Ra ng: L80 B10 50 000hrs
Colour Rendering (CRI): 80 L70 B10 100 000hrs
Total Harmonic Distor ons (THD): <15% Ingress Protec on(IP): IP65
Power Factor (PF): >0.9 Impact Resistance(IK): IK10
Electrical Class: Class I Beam Angle: 120°
LED Type: SMD 2835 Lifespan: 50 000hrs
Driver Type: Tridonic/Osram/Phillips/Vossloh Schwabe/Meanwell SDCM: 4
Opera ng Temp: -20 ~ +40°C Moun ng Op ons: Surface

Surge Protec on: Suspended
Cable Entry: Side Installa on Height: 2-8 Meters

MATERIAL STRUCTURE

Housing Body: Aluminium Lens: Frosted/Clear
Lens Diffuser: Polycarbonate (PC)
OPTIONAL FEATURES

Dimmable Op ons: DALI-Dimmable 0/1-10V
Sensor Op ons: Microwave
Emergency Op ons: On Request
ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Moun ng Driver Control CRI Accessories
Family ID (L*W*H) (W) Efficacy Protec on Angle Protec on Kit Type

Linear TP 600*78.2*68.9 20W(20W) 120lm/W 3000K(03) IP65 120° 2.5KV Surface Standard Standard 80 (8) Metal Bracket
(1)
(LIN) (TP) (676) (120LPW) 4000K(04) (IP65) (120D) (2.5KV) (SURK) (STD) STD) M3*50 Screws
1.5kg 130lm/W 5000K(05) 4KV Suspended 0-10V Emergency (2)
(EMG)
1200*78.2*68.9 30W(30W) (130LPW) 6000K(06) (4KV) (SUSK) (DIM) Microwave M3 Nut
(3)
(276) 40W(40W) Dali (MIC) Hole Cover
2.3kg (DAL) (4)
Expansion
1500*78.2*68.9 50W(50W) Pipe
(5)
(576) 60W(60W) 4*25 Screws
2.8kg
(6)
Gland
(7)
Suspended
Cable
(8)
Disclaimer
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
