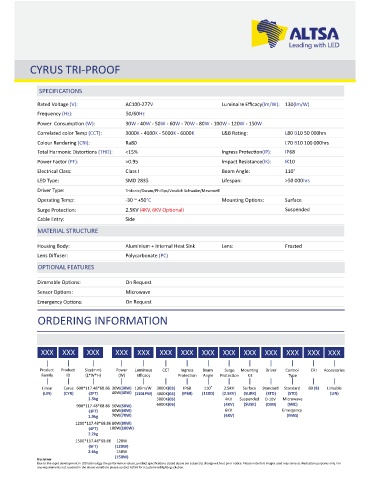

Page 153 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

CYRUS TRI-PROOF

SPECIFICATIONS

Rated Voltage (V): AC100-277V Luminaire Efficacy(lm/W): 130(lm/W)
Frequency (Hz): 50/60Hz
Power Consump on (W): 30W - 40W - 50W - 60W - 70W - 80W - 100W - 120W - 150W
Correlated color Temp (CCT): 3000K - 4000K - 5000K - 6000K L&B Ra ng: L80 B10 50 000hrs
Colour Rendering (CRI): Ra80 L70 B10 100 000hrs
Total Harmonic Distor ons (THD): <15% Ingress Protec on(IP): IP68
Power Factor (PF): >0.95 Impact Resistance(IK): IK10
Electrical Class: Class I Beam Angle: 110°
LED Type: SMD 2835 Lifespan: >50 000hrs
Driver Type: Tridonic/Osram/Phillips/Vossloh Schwabe/Meanwell
Opera ng Temp: -30 ~ +50°C Moun ng Op ons: Surface

Surge Protec on: Suspended
Cable Entry: Side

MATERIAL STRUCTURE

Housing Body: Aluminium + Internal Heat Sink Lens: Frosted
Lens Diffuser: Polycarbonate (PC)
OPTIONAL FEATURES

Dimmable Op ons: On Request
Sensor Op ons: Microwave
Emergency Op ons: On Request
ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Moun ng Driver Control CRI Accessories
Family ID (L*W*H) (W) Efficacy Protec on Angle Protec on Kit Type

Linear Cyrus 600*117.48*68.86 30W(30W) 130lm/W 3000K(03) IP68 110° 2.5KV Surface Standard Standard 80 (8) Linkable
(LIN) (CYR) (2FT) 40W(40W) (130LPW) 4000K(04) (IP68) (110D) (2.5KV) (SURK) (STD) (STD) (LIN)
1.3kg 5000K(05) 4KV Suspended 0-10V Microwave
900*117.48*68.86 50W(50W) 6000K(06) (4KV) (SUSK) (DIM) (MIC)
(3FT) 60W(60W) 6KV Emergency
1.9kg 70W(70W) (6KV) (EMG)
1200*117.48*68.86 80W(80W)
(4FT) 100W(100W)
2.2kg
1500*117.48*68.86 120W
(5FT) (120W)
2.6kg 150W
(150W)
Disclaimer
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
