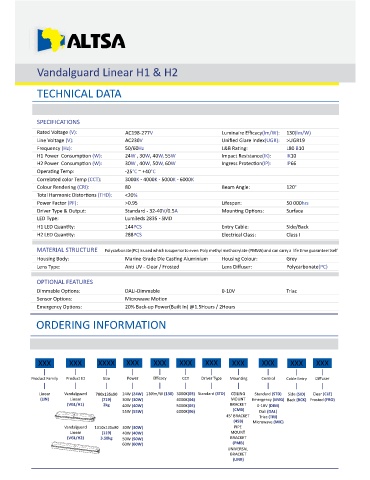

Vandalguard Linear H1 & H2

TECHNICAL DATA

SPECIFICATIONS
Rated Voltage (V): AC198-277V Luminaire Efficacy(lm/W): 130(lm/W)
Line Voltage (V): AC230V Unified Glare Index(UGR): >UGR19
Frequency (Hz): 50/60Hz L&B Ra ng: L80 B10
H1 Power Consump on (W): 24W , 30W, 40W, 55W Impact Resistance(IK): IK10
H2 Power Consump on (W): 30W , 40W, 50W, 60W Ingress Protec on(IP): IP66
Opera ng Temp: -25°C ~ +40°C
Correlated color Temp (CCT): 3000K - 4000K - 5000K - 6000K
Colour Rendering (CRI): 80 Beam Angle: 120°
Total Harmonic Distor ons (THD): <20%
Power Factor (PF): >0.95 Lifespan: 50 000hrs
Driver Type & Output: Standard - 32-40V/0.5A Moun ng Op ons: Surface
LED Type: Lumileds 2835 - SMD
H1 LED Quan ty: 144PCS Entry Cable: Side/Back
H2 LED Quan ty: 288PCS Electrical Class: Class I

MATERIAL STRUCTURE Polycarbonate(PC)isusedwhichissuperiortoeven Poly methyl methacrylate (PMMA)and can carry a life me guaranteeitself
Housing Body: Marine Grade Die Cas ng Aluminium Housing Colour: Grey
Lens Type: An UV - Clear / Frosted Lens Diffuser: Polycarbonate(PC)

OPTIONAL FEATURES
Dimmable Op ons: DALI-Dimmable 0-10V Triac
Sensor Op ons: Microwave Mo on
Emergency Op ons: 20% Back-up Power(Built In) @1.5Hours / 2Hours

ORDERING INFORMATION

XXX XXX XXXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Family Product ID Size Power Efficacy CCT Driver Type Moun ng Control Cable Entry Diffuser

Linear Vandalguard 700x135x90 24W (24W) 130lm/W (130) 3000K(03) Standard (STD) CEILING Standard (STD) Side (SID) Clear (CLE)
(LIN) Linear (719) 30W (30W) 4000K(04) MOUNT Emergency (EMG) Back (BCK) Frosted (FRO)
(VGL/H1) 2kg 40W (40W) 5000K(05) BRACKET 0-10V (DIM)
55W (55W) 6000K(06) (CMB) Dali (DAL)
45° BRACKET Triac (TRI)
(45B) Microwave (MIC)
Vandalguard 1310x135x90 30W (30W) PIPE
Linear (119) 40W (40W) MOUNT
(VGL/H2) 3.50kg 50W (50W) BRACKET
60W (60W) (PMB)
UNIVERSAL
BRACKET
(UNB)
