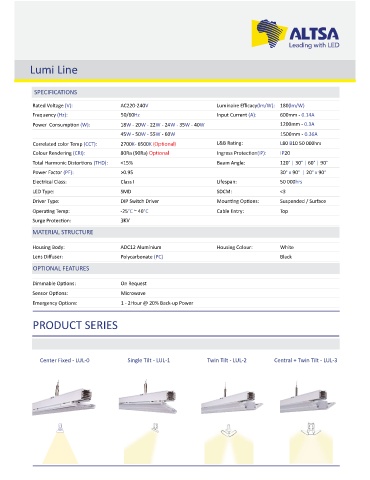

Lumi Line

SPECIFICATIONS

Rated Voltage (V): AC220-240V Luminaire Efficacy(lm/W): 180(lm/W)
Frequency (Hz): 50/60Hz Input Current (A): 600mm - 0.14A
Power Consump on (W): 18W - 20W - 22W - 24W - 35W - 40W 1200mm - 0.3A
45W - 50W - 55W - 60W 1500mm - 0.36A
Correlated color Temp (CCT): 2700K- 6500K L&B Ra ng: L80 B10 50 000hrs
Colour Rendering (CRI): 80Ra (90Ra) Ingress Protec on(IP): IP20
Total Harmonic Distor ons (THD): <15% Beam Angle: 120° | 30° | 60° | 90°
Power Factor (PF): >0.95 30° x 90° | 20° x 90°
Electrical Class: Class I Lifespan: 50 000hrs
LED Type: SMD SDCM: <3
Driver Type: DIP Switch Driver Moun ng Op ons: Suspended / Surface
Opera ng Temp: -25°C ~ 40°C Cable Entry: Top
Surge Protec on:
MATERIAL STRUCTURE

Housing Body: ADC12 Aluminium Housing Colour: White
Lens Diffuser: Polycarbonate (PC) Black
OPTIONAL FEATURES

Dimmable Op ons: On Request
Sensor Op ons: Microwave
Emergency Op ons: 1 - 2Hour @ 20% Back-up Power

PRODUCT SERIES

Center Fixed - LUL-0 Single Tilt - LUL-1 Twin Tilt - LUL-2 Central + Twin Tilt - LUL-3
