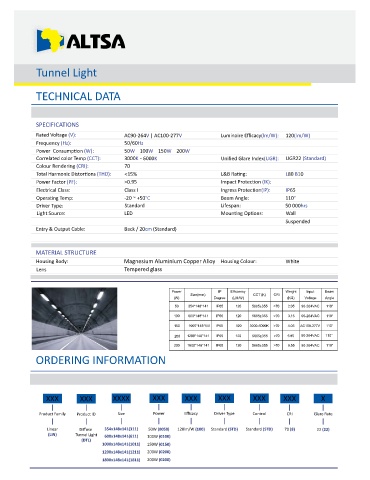

Tunnel Light

TECHNICAL DATA

SPECIFICATIONS
Rated Voltage (V): AC90-264V | AC100-277V Luminaire Efficacy(lm/W): 120(lm/W)
Frequency (Hz): 50/60Hz
Power Consump on (W): 50W 100W 150W 200W
Correlated color Temp (CCT): 3000K - 6000K Unified Glare Index(UGR): UGR22 (Standard)
Colour Rendering (CRI): 70
Total Harmonic Distor ons (THD): <15% L&B Ra ng: L80 B10
Power Factor (PF): >0.95 Impact Protec on (IK):
Electrical Class: Class I Ingress Protec on(IP): IP65
Opera ng Temp: -20 ~ +50°C Beam Angle: 110°
Driver Type: Standard Lifespan: 50 000hrs
Light Source: LED Moun ng Op ons: Wall
Suspended
Entry & Output Cable: Back / 20cm (Standard)

MATERIAL STRUCTURE
Housing Body: Magnesium Aluminium Copper Alloy Housing Colour: White
Lens Tempered glass

Power IP Efficiency Weight Input Beam
Size(mm) CCT (K) CRI
(W) Degree (LM/W) (KG) Voltage Angle
50 354*148*141 IP65 120 5665±355 >70 2.05 90-264VAC 110°
100 600*148*141 IP65 120 5665±355 >70 3.15 90-264VAC 110°
150 1000*148*141 IP65 120 3000-6000K >70 4.05 AC100-277V 110°
200 1200*148*141 IP65 120 5665±355 >70 5.85 90-264VAC 110°
200 1800*148*141 IP65 120 5665±355 >70 8.55 90-264VAC 110°
ORDERING INFORMATION

XXX XXX XXXX XXX XXX XXX XXX XXX X

Product Family Product ID Size Power Efficacy Driver Type Control CRI Glare Rate

Linear Diffuse 354x148x141(311) 50W (0050) 120lm/W (100) Standard (STD) Standard (STD) 70 (8) 22 (22)
(LIN) Tunnel Light 600x148x141(611) 100W (0100)
(DTL)
1000x148x141(1011) 150W (0150)
1200x148x141(1211) 200W (0200)
1800x148x141(1811) 200W (0200)
