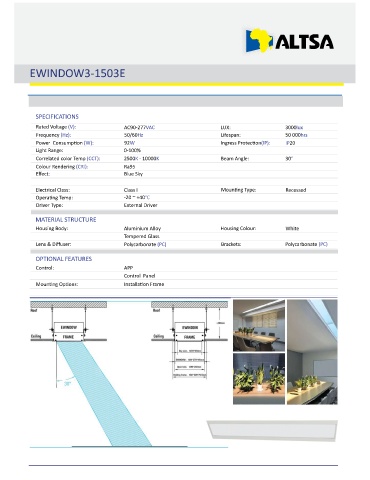

EWINDOW3-1503E

SPECIFICATIONS
Rated Voltage (V): AC90-277VAC LUX: 3000lux
Frequency (Hz): 50/60Hz Lifespan: 50 000hrs
Power Consump on (W): 92W Ingress Protec on(IP): IP20
Light Range: 0-100%
Correlated color Temp (CCT): 2500K - 10000K Beam Angle: 30°
Colour Rendering (CRI): Ra95
Effect: Blue Sky

Electrical Class: Class I Moun ng Type: Recessed
Opera ng Temp: -20 ~ +40°C
Driver Type: External Driver
MATERIAL STRUCTURE
Housing Body: Aluminium Alloy Housing Colour: White
Tempered Glass
Lens & Diffuser: Polycarbonate (PC) Brackets: Polycarbonate (PC)
OPTIONAL FEATURES
Control: APP
Control Panel
Moun ng Op ons: Installa on Frame
