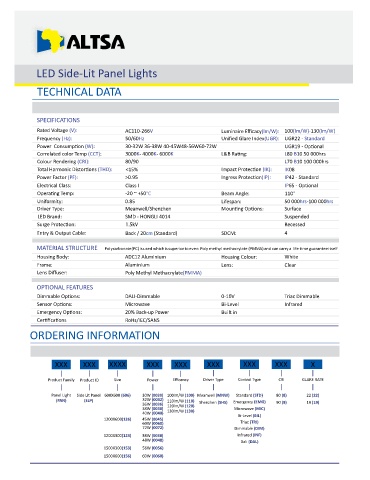

LED Side-Lit Panel Lights

TECHNICAL DATA

SPECIFICATIONS
Rated Voltage (V): AC110-266V Luminaire Efficacy(lm/W): 100(lm/W)-130(lm/W)
Frequency (Hz): 50/60Hz Unified Glare Index(UGR): UGR22 - Standard
Power Consump on (W): 30-32W 36-38W 40-45W48-56W60-72W UGR19 - Op onal
Correlated color Temp (CCT): 3000K- 4000K- 6000K L&B Ra ng: L80 B10 50 000hrs
Colour Rendering (CRI): 80/90 L70 B10 100 000hrs
Total Harmonic Distor ons (THD): <15% Impact Protec on (IK): IK08
Power Factor (PF): >0.95 Ingress Protec on(IP): IP42 - Standard
Electrical Class: Class I IP65 - Op onal
Opera ng Temp: -20 ~ +50°C Beam Angle: 110°
Uniformity: 0.85 Lifespan: 50 000hrs-100 000hrs
Driver Type: Meanwell/Shenzhen Moun ng Op ons: Surface
LED Brand: SMD - HONGLI 4014 Suspended
Surge Protec on: Recessed
Entry & Output Cable: Back / 20cm (Standard) SDCM: 4

MATERIAL STRUCTURE Polycarbonate(PC)isusedwhichissuperiortoeven Poly methyl methacrylate (PMMA)and can carry a life me guaranteeitself
Housing Body: ADC12 Aluminium Housing Colour: White
Frame: Aluminium Lens: Clear
Lens Diffuser: Poly Methyl Methacrylate(PMMA)
OPTIONAL FEATURES
Dimmable Op ons: DALI-Dimmable 0-10V Triac Dimmable
Sensor Op ons: Microwave Bi-Level Infrared
Emergency Op ons: 20% Back-up Power Built in
Cer fica ons RoHs/IEC/SANS

ORDERING INFORMATION

XXX XXX XXXX XXX XXX XXX XXX XXX X

Product Family Product ID Size Power Efficency Driver Type Control Type CRI GLARE RATE

Panel Light Side Lit Panel 600X600 (606) 30W (0030) 100lm/W (100) Meanwell (MNW) Standard (STD) 80 (8) 22 (22)
(PAN) (SLP) 32W (0032) 110lm/W (110) Shenzhen (SHS) Emergency (EMG) 90 (9) 19 (19)
36W (0036) 120lm/W (120)
38W (0038) Microwave (MIC)
40W (0040) 130lm/W (130) Bi-Level (BIL)
1200X600(126) 45W (0045)
60W (0060) Triac (TRI)
72W (0072) Dimmable (DIM)
1200X300(123) 38W (0038) Infrared (INF)
48W (0048) Dali (DAL)
1500X300(153) 56W (0056)
1500X600(156) 60W (0060)
