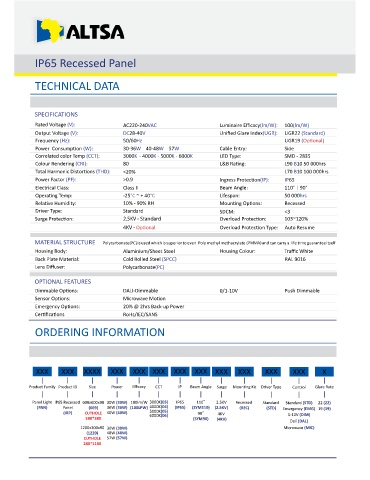

IP65 Recessed Panel

TECHNICAL DATA

SPECIFICATIONS
Rated Voltage (V): AC220-240VAC Luminaire Efficacy(lm/W): 100(lm/W)
Output Voltage (V): DC28-40V Unified Glare Index(UGR): UGR22 (Standard)
Frequency (Hz): 50/60Hz UGR19 (Op onal)
Power Consump on (W): 30-36W 40-48W 57W Cable Entry: Side
Correlated color Temp (CCT): 3000K - 4000K - 5000K - 6000K LED Type: SMD - 2835
Colour Rendering (CRI): 80 L&B Ra ng: L90 B10 50 000hrs
Total Harmonic Distor ons (THD): <20% L70 B10 100 000hrs
Power Factor (PF): >0.9 Ingress Protec on(IP): IP65
Electrical Class: Class II Beam Angle: 110° | 90°
Opera ng Temp: -25°C ~ + 40°C Lifespan: 50 000hrs
Rela ve Humidity: 10% - 90% RH Moun ng Op ons: Recessed
Driver Type: Standard SDCM: <3
Surge Protec on: Overload Protec on: 103~120%
Op onal Overload Protec on Type: Auto Resume

MATERIAL STRUCTURE Polycarbonate(PC)isusedwhichissuperiortoeven Poly methyl methacrylate (PMMA)and can carry a life me guaranteeitself
Housing Body: Aluminium/Sheet Steel Housing Colour: Traffic White
Back Plate Material: Cold Rolled Steel (SPCC) RAL 9016
Lens Diffuser: Polycarbonate(PC)

OPTIONAL FEATURES
Dimmable Op ons: DALI-Dimmable 0/1-10V Push Dimmable
Sensor Op ons: Microwave Mo on
Emergency Op ons: 20% @ 2hrs Back-up Power
Cer fica ons RoHs/IEC/SANS

ORDERING INFORMATION

XXX XXX XXXX XXX XXX XXX XXX XXX XXX XXX XXX XXX X

Product Family Product ID Size Power Efficacy CCT IP Beam Angle Surge Moun ng Kit Driver Type Control Glare Rate

Panel Light IP65 Recessed 600x600x90 30W (30W) 100lm/W 3000K(03) IP65 110° 2.5KV Recessed Standard Standard (STD) 22 (22)
(PAN) Panel (669) 36W (36W) (100LPW) 4000K(04) (IP65) (SYM110) (2.5KV) (REC) (STD) Emergency (EMG) 19 (19)
(IRP) CUTHOLE 40W (40W) 5000K(05) 90° 4KV 0-10V (DIM)
6000K(06)
580*580 (SYM90) (4KV) Dali (DAL)
1200x300x90 30W (30W) Microwave (MIC)
(1239) 48W (48W)
CUTHOLE 57W (57W)
280*1180
