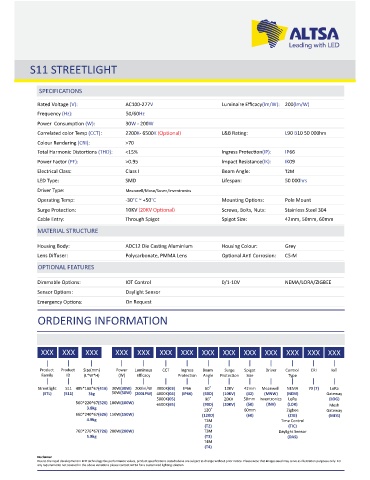

Page 444 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

S11 STREETLIGHT

SPECIFICATIONS

Rated Voltage (V): AC100-277V Luminaire Efficacy(lm/W): 200(lm/W)
Frequency (Hz): 50/60Hz
Power Consump on (W): 30W - 200W
Correlated color Temp (CCT): 2200K- 6500K L&B Ra ng: L90 B10 50 000hrs
Colour Rendering (CRI): >70
Total Harmonic Distor ons (THD): <15% Ingress Protec on(IP): IP66
Power Factor (PF): >0.95 Impact Resistance(IK): IK09
Electrical Class: Class I Beam Angle: T2M
LED Type: SMD Lifespan: 50 000hrs
Driver Type: Meanwell/Moso/Sosen/Inventronics
Opera ng Temp: -30°C ~ +50°C Moun ng Op ons: Pole Mount

Surge Protec on: Screws, Bolts, Nuts: Stainless Steel 304
Cable Entry: Through Spigot Spigot Size: 42mm, 50mm, 60mm

MATERIAL STRUCTURE

Housing Body: ADC12 Die Cas ng Aluminium Housing Colour: Grey
Lens Diffuser: Polycarbonate, PMMA Lens Op onal An Corrosion: C5-M
OPTIONAL FEATURES

Dimmable Op ons: IOT Control 0/1-10V NEMA/LORA/ZIGBEE
Sensor Op ons: Daylight Sensor
Emergency Op ons: On Request
ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Spigot Driver Control CRI IoT
Family ID (L*W*H) (W) Efficacy Protec on Angle Protec on Size Type

Streetlight S11 485*188*67(416) 30W(30W) 200lm/W 3000K(03) IP66 60° 10KV 42mm Meanwell NEMA 70 (7) LoRa
(STL) (S11) 3kg 50W(50W) (200LPW) 4000K(04) (IP66) (60D) (10KV) (42) (MNW) (NEM) Gateway
5000K(05) 90° 20KV 50mm Inventronics LoRa (LOG)
560*220*67(526) 100W(100W) 6500K(65) (90D) (20KV) (50) (INV) (LOR) Mesh
3.8kg 120° 60mm Zigbee Gateway
660*240*67(626) 150W(150W) (120D) (60) (ZIG) (MEG)
4.9kg T2M Time Control
(T2) (TIC)
760*276*67(726) 200W(200W) T3M Daylight Sensor
5.8kg (T3) (DAS)
T4M
(T4)
Disclaimer
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
