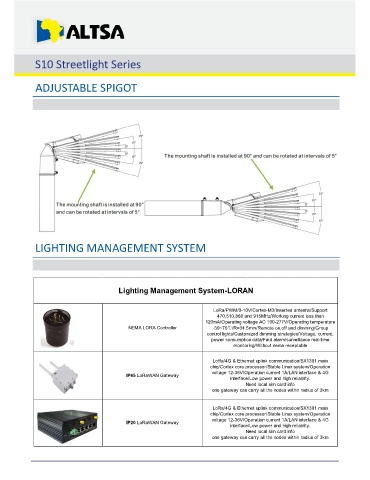

S10 Streetlight Series

ADJUSTABLE SPIGOT

LIGHTING MANAGEMENT SYSTEM

Lighting Management System-LORAN

LoRa/PWM/0-10V/Cortex-M3/Inserted antenna/Support
470,510,868 and 915MHz/Working current less than
120mA/Operating voltage AC 100-277V/Operating temperature
NEMA LORA Controller -30~70℃/R=34.5mm/Remote on,off and dimming/Group
control lights/Customized dimming strategies/Voltage, current,
power consumption data/Faut alarm/surveillance real-time
monitoring/Without nema receptable

LoRa/4G & Ethernet uplink communication/SX1301 main
chip/Cortex core processor/Stable Linux system/Operation
voltage 12-36V/Operation current 1A/LAN interface & 4G
IP65 LoRaWAN Gateway
interface/Low power and high reliablity.
Need local sim card info
one gateway can carry all the nodes within radius of 3km

LoRa/4G & Ethernet uplink communication/SX1301 main
chip/Cortex core processor/Stable Linux system/Operation
voltage 12-36V/Operation current 1A/LAN interface & 4G
IP20 LoRaWAN Gateway
interface/Low power and high reliablity.
Need local sim card info
one gateway can carry all the nodes within radius of 3km
