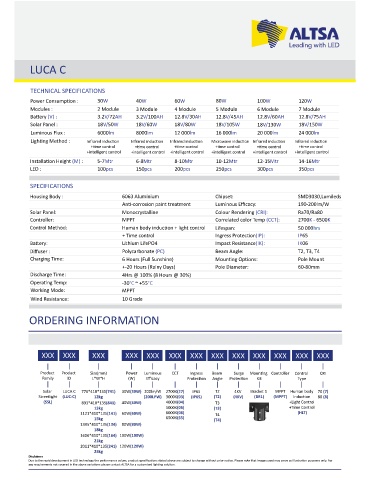

Page 471 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

LUCA C

TECHNICAL SPECIFICATIONS
Power Consump on : 30W 40W 60W 80W 100W 120W
Modules : 2 Module 3 Module 4 Module 5 Module 6 Module 7 Module
Ba ery (V) : 3.2V/72AH 3.2V/100AH 12.8V/30AH 12.8V/45AH 12.8V/60AH 12.8V/75AH
Solar Panel : 18V/50W 18V/60W 18V/80W 18V/105W 18V/130W 18V/150W
Luminous Flux : 6000lm 8000lm 12 000lm 16 000lm 20 000lm 24 000lm
Ligh ng Method : Infrared induc on Infrared induc on Infrared induc on Microwave induc on Infrared induc on Infrared induc on
+ me control + me control + me control + me control + me control + me control
+intelligent control +intelligent control +intelligent control +intelligent control +intelligent control +intelligent control
Installa on Height (M) : 5-7Mtr 6-8Mtr 8-10Mtr 10-12Mtr 12-15Mtr 14-16Mtr
LED : 100pcs 150pcs 200pcs 250pcs 300pcs 350pcs

SPECIFICATIONS
Housing Body : 6063 Aluminium Chipset: SMD3030,Lumileds
An -corrosion paint treatment Luminous Efficacy: 190-200lm/W
Solar Panel: Monocrystalline Colour Rendering (CRI): Ra70/Ra80
Controller: MPPT Correlated color Temp (CCT): 2700K - 6500K
Control Method: Human body induc on + light control Lifespan: 50 000hrs
+ Time control Ingress Protec on(IP): IP65
Ba ery: Lithium LifePO4 Impact Resistance(IK): IK06
Diffuser : Polycarbonate (PC) Beam Angle: T2, T3, T4
Charging Time: 6 Hours (Full Sunshine) Moun ng Op ons: Pole Mount
+-20 Hours (Rainy Days) Pole Diameter: 60-80mm
Discharge Time: 4Hrs @ 100% (8 Hours @ 30%)
Opera ng Temp: -30°C ~ +55°C
Working Mode:
Wind Resistance: 10 Grade

ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Moun ng Controller Control CRI
Family ID L*W*H (W) Efficacy Protec on Angle Protec on Kit Type

Solar LUCA C 776*410*135(741) 30W(30W) 200lm/W 2700K(27) IP65 T2 4KV Bracket 1 MPPT Human body 70 (7)
Streetlight (LUC-C) 12kg (200LPW) 3000K(03) (IP65) (T2) (4KV) (BR1) (MPPT) Induc on 80 (8)
(SSL) 893*410*135(841) 40W(40W) 4000K(04) T3 +Light Control
13kg 5000K(05) (T3) +Time Control
1121*410*135(141) 60W(60W) 6000K(06) T4 (HLT)
15kg 6500K(65) (T4)
1395*410*135(134) 80W(80W)
18kg
1606*410*135(164) 100W(100W)
21kg
2011*410*135(241) 120W(120W)
25kg
Disclaimer
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
