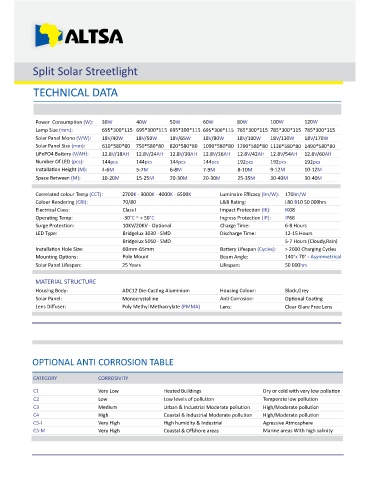

Page 475 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

Split Solar Streetlight

TECHNICAL DATA

Power Consump on (W): 30W 40W 50W 60W 80W 100W 120W
Lamp Size (mm): 695*300*115 695*300*115 695*300*115 695*300*115 785*300*115 785*300*115 785*300*115
Solar Panel Mono (V/W): 18V/40W 18V/50W 18V/65W 18V/80W 18V/100W 18V/130W 18V/170W
Solar Panel Size (mm): 610*580*80 750*580*80 820*580*80 1090*580*80 1290*580*80 1130*580*80 1490*580*80
LiFePO4 Ba ery (V/AH): 12.8V/18AH 12.8V/24AH 12.8V/30AH 12.8V/36AH 12.8V/42AH 12.8V/54AH 12.8V/60AH
Number Of LED (pcs): 144pcs 144pcs 144pcs 144pcs 192pcs 192pcs 192pcs
Installa on Height (M): 4-6M 5-7M 6-8M 7-9M 8-10M 9-12M 10-12M
Space Between (M): 10-20M 15-25M 20-30M 20-30M 25-35M 30-40M 30-40M

Correlated colour Temp (CCT): 2700K - 3000K - 4000K - 6500K Luminaire Efficacy (lm/W): 170lm/W
Colour Rendering (CRI): 70/80 L&B Ra ng: L80 B10 50 000hrs
Electrical Class: Class I Impact Protec on (IK): IK08
Opera ng Temp: -30°C ~ + 50°C Ingress Protec on (IP): IP66
Surge Protec on: 10KV/20KV - Op onal Charge Time: 6-8 Hours
LED Type: Bridgelux 3030 - SMD Discharge Time: 12-15 Hours
Bridgelux 5050 - SMD 5-7 Hours (Cloudy,Rain)
Installa on Hole Size: Ba ery Lifespan (Cycles): > 2000 Charging Cycles
Moun ng Op ons: Pole Mount Beam Angle: 140°x 70° - Asymmetrical
Solar Panel Lifespan: 25 Years Lifespan: 50 000hrs

MATERIAL STRUCTURE
Housing Body: ADC12 Die-Cas ng Aluminium Housing Colour: Black,Grey
Solar Panel: Monocrystalline An Corrosion: Op onal Coa ng
Lens Diffuser: Poly Methyl Methacrylate (PMMA) Lens: Clear Glare Free Lens

OPTIONAL ANTI CORROSION TABLE

CATEGORY CORROSIVITY

C1 Very Low Heated Buildings Dry or cold with very low pollu on
C2 Low Low levels of pollu on Temperate low pollu on
C3 Medium Urban & Industrial Moderate pollu on High/Moderate pollu on
C4 High Coastal & Industrial Moderate pollu on High/Moderate pollu on
C5-I Very High High humidity & Industrial Agressive Atmosphere
C5-M Very High Coastal & Offshore areas Marine areas With high salinity
