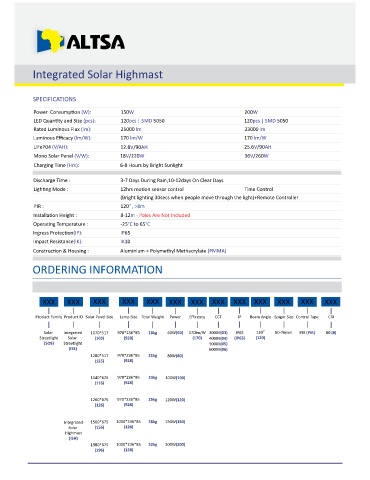

Integrated Solar Highmast

SPECIFICATIONS
Power Consump on (W): 150W 200W
LED Quan ty and Size (pcs): 120pcs | SMD 5050 120pcs | SMD 5050
Rated Luminous Flux (lm): 25000 lm 33000 lm
Luminous Efficacy (lm/W): 170 lm/W 170 lm/W
LiFeP04 (V/AH): 12.8V/90AH 25.6V/90AH
Mono Solar Panel (V/W): 18V/220W 36V/260W
Charging Time (Hrs): 6-8 Hours by Bright Sunlight

Discharge Time : 3-7 Days During Rain,10-12days On Clear Days
Ligh ng Mode : 12hrs mo on sensor control Time Control
(Bright ligh ng 30secs when people move through the light)+Remote Controller
PIR : 120° , >8m
Installa on Height : 8-12m - Poles Are Not Included
Opera ng Temperature : -25°C to 65°C
Ingress Protec on(IP): IP65
Impact Resistance(IK): IK10
Construc on & Housing : Aluminium + Polymethyl Methacrylate (PMMA)

ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Family Product ID Solar Panel Size Lamp Size Total Weight Power Efficency CCT IP Beam Angle Spigot Size Control Type CRI

Solar Integrated 1070*517 970*236*85 18kg 60W(60) 170lm/W 3000K(03) IP65 120° 60-76mm PIR (PIR) 80 (8)
Streetlight Solar (105) (928) (170) 4000K(04) (IP65) (120)
(SOS) Streetlight 5000K(05)
(ISS) 6000K(06)
1280*517 970*236*85 21kg 80W(80)
(125) (928)

1140*675 970*236*85 23kg 100W(100)
(116) (928)

1260*675 970*236*85 25kg 120W(120)
(126) (928)

Integrated 1560*675 1000*236*85 28kg 150W(150)
Solar (156) (128)
Highmast
(ISH)
1980*675 1000*236*85 32kg 200W(200)
(196) (128)
