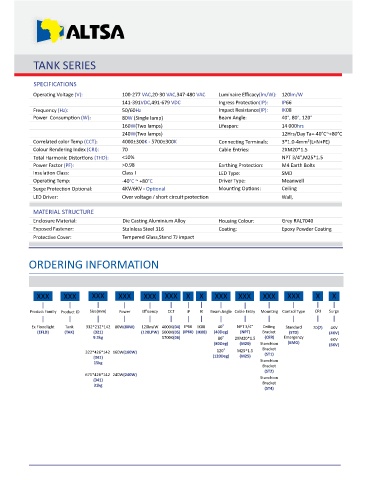

Page 507 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

TANK SERIES

SPECIFICATIONS

Opera ng Voltage (V): 100-277 VAC,20-30 VAC,347-480 VAC Luminaire Efficacy(lm/W): 120lm/W
141-391VDC,491-679 VDC Ingress Protec on(IP): IP66
Frequency (Hz): 50/60Hz Impact Resistance(IP): IK08
Power Consump on (W): 80W (Single lamp) Beam Angle: 40°, 80°, 120°
160W(Two lamps) Lifespan: 14 000hrs
240W(Two lamps) 12Hrs/Day Ta=-40°C~+80°C
Correlated color Temp (CCT): 4000±300K - 5700±300K Connec ng Terminals: 3*1.0-4mm²(L+N+PE)
Colour Rendering Index (CRI): 70 Cable Entries: 2XM20*1.5
Total Harmonic Distor ons (THD): <10% NPT 3/4”,M25*1.5
Power Factor (PF): >0.98 Earthing Protec on: M4 Earth Bolts
Insula on Class: Class I LED Type: SMD
Opera ng Temp: -40°C ~ +80°C Driver Type: Meanwell
Surge Protec on Op onal: Op onal Moun ng Op ons: Ceiling
LED Driver: Wall,

MATERIAL STRUCTURE
Enclosure Material: Die Cas ng Aluminium Alloy Housing Colour: Grey RAL7040
Exposed Fastener: Stainless Steel 316 Coa ng: Epoxy Powder Coa ng
Protec ve Cover: Tempered Glass,Stand 7J impact

ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX X X XXX XXX XXX XXX X X

Product Family Product ID Size(mm) Power Efficency CCT IP IK Beam Angle Cable Entry Moun ng Control Type CRI Surge

Ex Floodlight Tank 332*212*142 80W(80W) 120lm/W 4000K(04) IP66 IK08 40° NPT 3/4” Ceiling Standard 70(7) 4KV
(EFLD) (TAK) (321) (120LPW) 5000K(05) (IP66) (IK08) (40Deg) (NPT) Bracket (STD) (4KV)
9.3kg 5700K(06) 80° 2XM20*1.5 (CER) Emergency 6KV
(80Deg) (M20) Stanchion (EMG) (6KV)
322*426*142 160W(160W) 120° M25*1.5 Bracket
(ST1)
(341) (120Deg) (M25)
15kg Stanchion
Bracket
(ST2)
671*426*142 240W(240W) Stanchion
(341)
31kg Bracket
(ST4)
