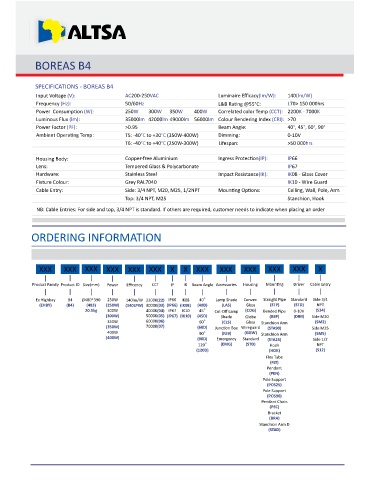

BOREAS B4

SPECIFICATIONS - BOREAS B4
Input Voltage (V): AC200-250VAC Luminaire Efficacy(lm/W): 140(lm/W)
Frequency (Hz): 50/60Hz L&B Ra ng @55°C: L70> 150 000hrs
Power Consump on (W): 250W 300W 350W 400W Correlated color Temp (CCT): 2200K - 7000K
Luminous Flux (lm): 35000lm 42000lm 49000lm 56000lm Colour Rendering Index (CRI): >70
Power Factor (PF): >0.95 Beam Angle: 40°, 45°, 60°, 90°
Ambient Opera ng Temp: T5: -40°C to +30°C (350W-400W) Dimming: 0-10V
T6: -40°C to +40°C (250W-300W) Lifespan: >50 000hrs

Housing Body: Copper-free Aluminium Ingress Protec on(IP): IP66
Lens: Tempered Glass & Polycarbonate IP67
Hardware: Stainless Steel Impact Resistance(IK): IK08 - Glass Cover
Fixture Colour: Grey RAL7040 IK10 - Wire Guard
Cable Entry: Side: 3/4 NPT, M20, M25, 1/2NPT Moun ng Op ons: Ceiling, Wall, Pole, Arm
Top: 3/4 NPT, M25 Stanchion, Hook
NB: Cable Entries: For side and top, 3/4 NPT is standard. If others are required, customer needs to indicate when placing an order

ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX X X XXX XXX XXX XXX XXX X

Product Family Product ID Size(mm) Power Efficency CCT IP IK Beam Angle Accessories Housing Moun ng Driver Cable Entry

Ex Highbay B4 Ø480*390 250W 140lm/W 2200K(22) IP66 IK08 40° Lamp Shade Convex Straight Pipe Standard Side 3/4
(EHBY) (B4) (483) (250W) (140LPW) 3000K(03) (IP66) (IK08) (40D) (LAS) Glass (STP) (STD) NPT
20.5kg 300W 4000K(04) IP67 IK10 45° Cut-Off Lamp (COG) Bended Pipe 0-10V (S34)
(300W) 5000K(05) (IP67) (IK10) (45D) Shade Globe (BEP) (DIM) Side M20
350W 6000K(06) 60° (CLS) Glass Stanchion Arm (SM2)
(350W) 7000K(07) (60D) Junc on Box Wireguard (STA90) Side M25
400W 90° (JUB) (GGW) Stanchion Arm (SM5)
(400W) (90D) Emergency Standard (STA25) Side 1/2
120° (EMG) (STD) Hook NPT
(120D) (HOK) (S12)
Flex Tube
(FLT)
Pendant
(PEN)
Pole Support
(POS25)
Pole Support
(POS90)
Pendant Chain
(PEC)
Bracket
(BRA)
Stanchion Arm D
(STAD)
