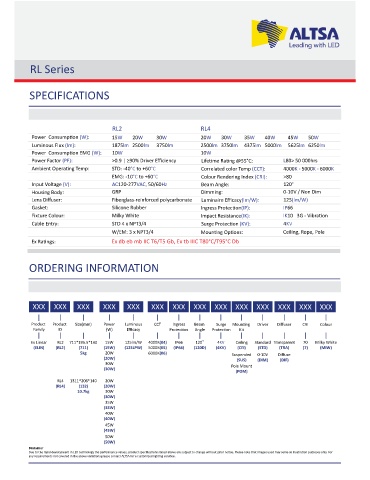

Page 556 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

RL Series

SPECIFICATIONS

RL2 RL4
Power Consump on (W): 15W 20W 30W 20W 30W 35W 40W 45W 50W
Luminous Flux (lm): 1875lm 2500lm 3750lm 2500lm 3750lm 4375lm 5000lm 5625lm 6250lm
Power Consump on EMG (W): 10W 10W
Power Factor (PF): >0.9 | ≥90% Driver Efficiency Life me Ra ng @55°C: L80> 50 000hrs
Ambient Opera ng Temp: STD: -40°C to +60°C Correlated color Temp (CCT): 4000K - 5000K - 6000K
EMG: -10°C to +60°C Colour Rendering Index (CRI): >80
Input Voltage (V): AC120-277VAC, 50/60Hz Beam Angle: 120°
Housing Body: GRP Dimming: 0-10V / Non Dim
Lens Diffuser: Fiberglass-reinforced polycarbonate Luminaire Efficacy(lm/W): 125(lm/W)
Gasket: Silicone Rubber Ingress Protec on(IP): IP66
Fixture Colour: Milky White Impact Resistance(IK): IK10 3G - Vibra on
Cable Entry: STD 4 x NPT3/4 Surge Protec on (KV): 4KV
W/EM: 3 x NPT3/4 Moun ng Op ons: Ceiling, Rope, Pole
Ex Ra ngs: Ex db eb mb IIC T6/T5 Gb, Ex tb IIIC T80°C/T95°C Db

ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Moun ng Driver Diffuser CRI Colour
Family ID (W) Efficacy Protec on Angle Protec on Kit

Ex Linear RL2 711*195.5*140 15W 125lm/W 4000K(04) IP66 120° 4KV Ceiling Standard Transparent 70 Milky White
(ELIN) (RL2) (711) (15W) (125LPW) 5000K(05) (IP66) (120D) (4KV) (CEI) (STD) (TRA) (7) (MIW)
5kg 20W 6000K(06) Suspended 0-10V Diffuse
(20W) (SUS) (DIM) (DIF)
30W Pole Mount
(30W)
(POM)
RL4 1311*206*140 20W
(RL4) (132) (20W)
10.7kg 30W
(30W)
35W
(35W)
40W
(40W)
45W
(45W)
50W
(50W)
Disclaimer
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
