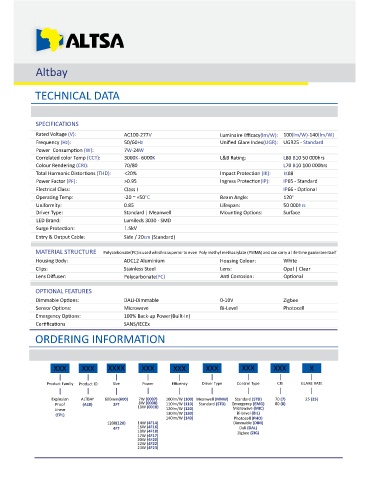

Page 571 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

Altbay

TECHNICAL DATA

SPECIFICATIONS
Rated Voltage (V): AC100-277V Luminaire Efficacy(lm/W): 100(lm/W)-140(lm/W)
Frequency (Hz): 50/60Hz Unified Glare Index(UGR): UGR25 - Standard
Power Consump on (W): 7W-24W
Correlated color Temp (CCT): 3000K- 6000K L&B Ra ng: L80 B10 50 000hrs
Colour Rendering (CRI): 70/80 L70 B10 100 000hrs
Total Harmonic Distor ons (THD): <20% Impact Protec on (IK): IK08
Power Factor (PF): >0.95 Ingress Protec on(IP): IP65 - Standard
Electrical Class: Class I IP66 - Op onal
Opera ng Temp: -20 ~ +50°C Beam Angle: 120°
Uniformity: 0.85 Lifespan: 50 000hrs
Driver Type: Standard | Meanwell Moun ng Op ons: Surface
LED Brand: Lumileds 3030 - SMD
Surge Protec on:
Entry & Output Cable: Side / 20cm (Standard)

MATERIAL STRUCTURE Polycarbonate(PC)isusedwhichissuperiortoeven Poly methyl methacrylate (PMMA)and can carry a life me guaranteeitself
Housing Body: ADC12 Aluminium Housing Colour: White
Clips: Stainless Steel Lens: Opal | Clear
Lens Diffuser: Polycarbonate(PC) An Corrosion: Op onal

OPTIONAL FEATURES
Dimmable Op ons: DALI-Dimmable 0-10V Zigbee
Sensor Op ons: Microwave Bi-Level Photocell
Emergency Op ons: 100% Back-up Power(Built-In)
Cer fica ons SANS/IECEx
ORDERING INFORMATION

XXX XXX XXXX XXX XXX XXX XXX XXX X

Product Family Product ID Size Power Efficency Driver Type Control Type CRI GLARE RATE

Explosion ALTBAY 600mm(600) 7W (0007) 100lm/W (100) Meanwell (MNW) Standard (STD) 70 (7) 25 (25)
Proof (ALB) 2FT 8W (0008) 110lm/W (110) Standard (STD) Emergency (EMG) 80 (8)
Linear 10W (0010) 120lm/W (120) Microwave (MIC)
(EPL) 130lm/W (130) Bi-Level (BIL)
140lm/W (140) Photocell (PHO)
1200(120) 14W (4F14) Dimmable (DIM)
4FT 16W (4F16) Dali (DAL)
18W (4F18) Zigbee (ZIG)
17W (4F17)
20W (4F20)
22W (4F22)
23W (4F23)
