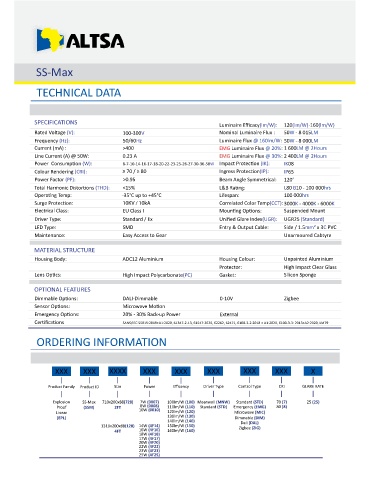

Page 566 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

SS-Max

TECHNICAL DATA

SPECIFICATIONS Luminaire Efficacy(lm/W): 120(lm/W)-160(lm/W)

Rated Voltage (V): 100-300V Nominal Luminaire Flux : 50W - 8 015LM
Frequency (Hz): 50/60Hz Luminaire Flux @ 160lm/W: 50W - 8 000LM
Current (mA) : >400 EMG Luminaire Flux @ 20%: 1 600LM @ 2Hours
Line Current (A) @ 50W: 0.23 A EMG Luminaire Flux @ 30%: 2 400LM @ 2Hours
Power Consump on (W): 8-7-10-14-16-17-18-20-22-23-25-26-27-30-36-58W Impact Protec on (IK): IK08
Colour Rendering (CRI): ≥ 70 / ≥ 80 Ingress Protec on(IP): IP65
Power Factor (PF): >0.95 Beam Angle Symmetrical: 120°
Total Harmonic Distor ons (THD): <15% L&B Ra ng: L80 B10 - 100 000hrs
Opera ng Temp: -35°C up to +45°C Lifespan: 100 000hrs
Surge Protec on: Correlated Color Temp(CCT): 3000K - 4000K - 6000K
Electrical Class: EU Class I Moun ng Op ons: Suspended Mount
Driver Type: Standard / Ex Unified Glare Index(UGR): UGR25 (Standard)
LED Type: SMD Entry & Output Cable: Side / 1.5mm² x 3C PVC
Maintenance: Easy Access to Gear Unarmoured Cabtyre

MATERIAL STRUCTURE
Housing Body: ADC12 Aluminium Housing Colour: Unpainted Aluminium
Protector: High Impact Clear Glass
Lens Op cs: High Impact Polycarbonate(PC) Gasket: Silicon Sponge

OPTIONAL FEATURES
Dimmable Op ons: DALI-Dimmable 0-10V Zigbee
Sensor Op ons: Microwave Mo on
Emergency Op ons: 20% - 30% Back-up Power External
Cer fica ons SANS/IEC 55015:2019+A1:2020, 61347-2-13, 61547:2020, 62262, 62471, 6100-3-2:2018 + A1:2020, 6100-3-3: 2013+A2:2020, LM79

ORDERING INFORMATION

XXX XXX XXXX XXX XXX XXX XXX XXX X

Product Family Product ID Size Power Efficency Driver Type Control Type CRI GLARE RATE

Explosion SS-Max 710x200x88(728) 7W (0007) 100lm/W (100) Meanwell (MNW) Standard (STD) 70 (7) 25 (25)
Proof (SSM) 2FT 8W (0008) 110lm/W (110) Standard (STD) Emergency (EMG) 80 (8)
Linear 10W (0010) 120lm/W (120) Microwave (MIC)
(EPL) 130lm/W (130) Dimmable (DIM)
140lm/W (140) Dali (DAL)
1310x200x88(128) 14W (4F14) 150lm/W (150) Zigbee (ZIG)
4FT 16W (4F16) 160lm/W (160)
18W (4F18)
17W (4F17)
20W (4F20)
22W (4F22)
23W (4F23)
25W (4F25)
