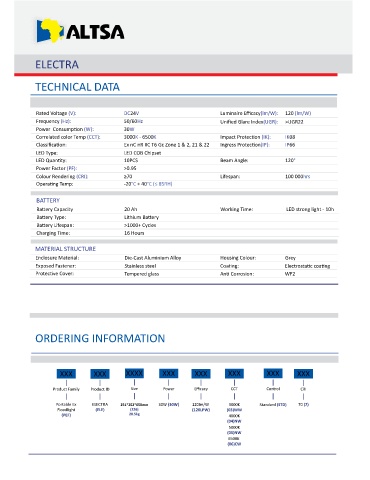

Page 588 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

ELECTRA

TECHNICAL DATA

Rated Voltage (V): DC24V Luminaire Efficacy(lm/W): 120 (lm/W)
Frequency (Hz): 50/60Hz Unified Glare Index(UGR): >UGR22
Power Consump on (W): 30W
Correlated color Temp (CCT): 3000K - 6500K Impact Protec on (IK): IK08
Classifica on: Ex nC nR IIC T6 Gc Zone 1 & 2, 21 & 22 Ingress Protec on(IP): IP66
LED Type: LED COB Chipset
LED Quan ty: 10PCS Beam Angle: 120°
Power Factor (PF): >0.95
Colour Rendering (CRI): ≥70 Lifespan: 100 000hrs
Opera ng Temp: -20°C + 40°C (≤ 85RH)

BATTERY
Ba ery Capacity 20 Ah Working Time: LED strong light - 10h
Ba ery Type: Lithium Ba ery
Ba ery Lifespan: >1000+ Cycles
Charging Time: 16 Hours

MATERIAL STRUCTURE
Enclosure Material: Die-Cast Aluminium Alloy Housing Colour: Grey
Exposed Fastener: Stainless steel Coa ng: Electrosta c coa ng
Protec ve Cover: Tempered glass An Corrosion: WF2

ORDERING INFORMATION

XXX XXX XXXX XXX XXX XXX XXX XXX

Product Family Product ID Size Power Efficacy CCT Control CRI

Portable Ex ELECTRA 251*252*650mm 30W (30W) 120lm/W 3000K Standard (STD) 70 (7)
Floodlight (ELE) (226) (120LPW) (03)WW
(PEF) 20.5kg 4000K
(04)NW
5000K
(05)NW
6500K
(06)CW
