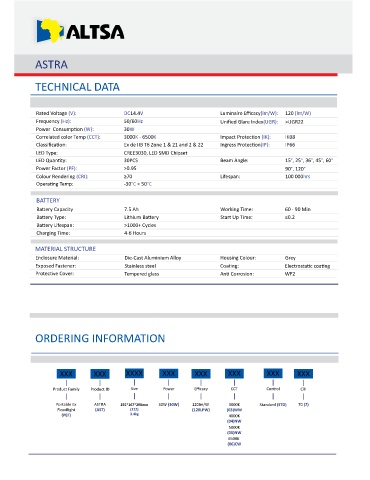

Page 585 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

ASTRA

TECHNICAL DATA

Rated Voltage (V): DC14.4V Luminaire Efficacy(lm/W): 120 (lm/W)
Frequency (Hz): 50/60Hz Unified Glare Index(UGR): >UGR22
Power Consump on (W): 30W
Correlated color Temp (CCT): 3000K - 6500K Impact Protec on (IK): IK08
Classifica on: Ex de IIB T6 Zone 1 & 21 and 2 & 22 Ingress Protec on(IP): IP66
LED Type: CREE3030, LED SMD Chipset
LED Quan ty: 30PCS Beam Angle: 15°, 25°, 36°, 45°, 60°
Power Factor (PF): >0.95 90°, 120°
Colour Rendering (CRI): ≥70 Lifespan: 100 000hrs
Opera ng Temp: -30°C + 50°C

BATTERY
Ba ery Capacity 7.5 Ah Working Time: 60 - 90 Min
Ba ery Type: Lithium Ba ery Start Up Time: ≤0.2
Ba ery Lifespan: >1000+ Cycles
Charging Time: 4-6 Hours

MATERIAL STRUCTURE
Enclosure Material: Die-Cast Aluminium Alloy Housing Colour: Grey
Exposed Fastener: Stainless steel Coa ng: Electrosta c coa ng
Protec ve Cover: Tempered glass An Corrosion: WF2

ORDERING INFORMATION

XXX XXX XXXX XXX XXX XXX XXX XXX

Product Family Product ID Size Power Efficacy CCT Control CRI

Portable Ex ASTRA 255*167*290mm 30W (30W) 120lm/W 3000K Standard (STD) 70 (7)
Floodlight (AST) (212) (120LPW) (03)WW
(PEF) 3.4kg 4000K
(04)NW
5000K
(05)NW
6500K
(06)CW
