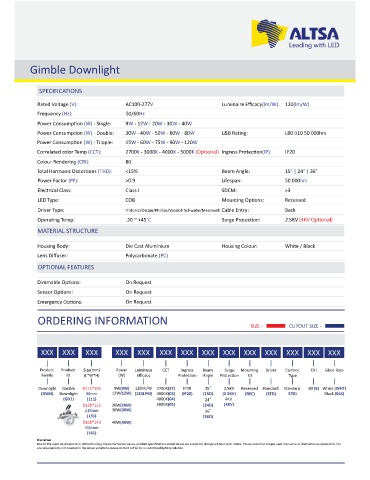

Gimble Downlight

SPECIFICATIONS

Rated Voltage (V): AC100-277V Luminaire Efficacy(lm/W): 120(lm/W)
Frequency (Hz): 50/60Hz
Power Consump on (W) - Single: 9W - 12W - 20W - 30W - 40W
Power Consump on (W) - Double: 30W - 40W - 50W - 60W - 80W L&B Ra ng: L80 B10 50 000hrs
Power Consump on (W) - Tripple: 45W - 60W - 75W - 90W - 120W
Correlated color Temp (CCT): 2700K - 3000K - 4000K - 5000K Ingress Protec on(IP): IP20
Colour Rendering (CRI): 80
Total Harmonic Distor ons (THD): <15% Beam Angle: 15° | 24° | 36°
Power Factor (PF): >0.9 Lifespan: 50 000hrs
Electrical Class: Class I SDCM: >3
LED Type: COB Moun ng Op ons: Recessed

Driver Type: Tridonic/Osram/Phillips/Vossloh Schwabe/Meanwell Cable Entry: Back
Opera ng Temp: -20 ~ +45°C Surge Protec on:
MATERIAL STRUCTURE

Housing Body: Die Cast Aluminium Housing Colour: White / Black
Lens Diffuser: Polycarbonate (PC)
OPTIONAL FEATURES

Dimmable Op ons: On Request
Sensor Op ons: On Request
Emergency Op ons: On Request
ORDERING INFORMATION
SIZE - CUTOUT SIZE -

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Moun ng Driver Control CRI Glare Rate
Family ID (L*W*H) (W) Efficacy Protec on Angle Protec on Kit Type

Downlight Gimble D115*105 9W(9W) 120lm/W 2700K(27) IP20 15° 2.5KV Recessed Standard Standard 80 (8) White (WHT)
(DWN) Downlight 90mm 12W(12W) (120LPW) 3000K(03) (IP20) (15D) (2.5KV) (REC) (STD) STD) Black (BLK)
(GD1) (111) 4000K(04) 24° 4KV
D135*115 20W(20W) 5000K(05) (24D) (4KV)
115mm 30W(30W) 36°
(131) (36D)
D165*143 40W(40W)
155mm
(161)
Disclaimer
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
