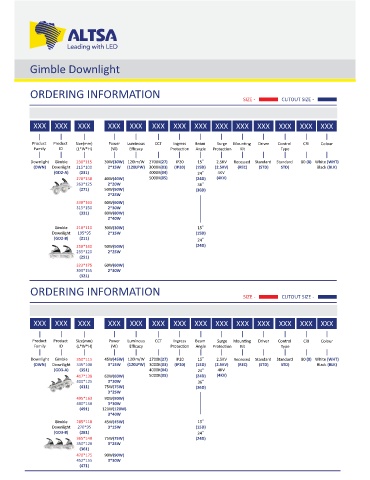

Gimble Downlight

ORDERING INFORMATION
SIZE - CUTOUT SIZE -

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Moun ng Driver Control CRI Colour
Family ID (L*W*H) (W) Efficacy Protec on Angle Protec on Kit Type

Downlight Gimble 230*115 30W(30W) 120lm/W 2700K(27) IP20 15° 2.5KV Recessed Standard Standard 80 (8) White (WHT)
(DWN) Downlight 215*100 2*15W (120LPW) 3000K(03) (IP20) (15D) (2.5KV) (REC) (STD) STD) Black (BLK)
(GD2-A) (231) 4000K(04) 24° 4KV
278*138 40W(40W) 5000K(05) (24D) (4KV)
263*125 2*20W 36°
(271) 50W(50W) (36D)
2*25W
330*163 60W(60W)
315*150 2*30W
(331) 80W(80W)
2*40W
Gimble 210*110 30W(30W) 15°
Downlight 195*95 2*15W (15D)
(GD2-B) (211) 24°
250*140 50W(50W) (24D)
235*120 2*25W
(251)
323*175 60W(60W)
303*155 2*30W
(321)
ORDERING INFORMATION
SIZE - CUTOUT SIZE -

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Moun ng Driver Control CRI Colour
Family ID (L*W*H) (W) Efficacy Protec on Angle Protec on Kit Type

Downlight Gimble 350*115 45W(45W) 120lm/W 2700K(27) IP20 15° 2.5KV Recessed Standard Standard 80 (8) White (WHT)
(DWN) Downlight 335*100 3*15W (120LPW) 3000K(03) (IP20) (15D) (2.5KV) (REC) (STD) STD) Black (BLK)
(GD3-A) (351) 4000K(04) 24° 4KV
417*138 60W(60W) 5000K(05) (24D) (4KV)
400*125 3*20W 36°
(411) 75W(75W) (36D)
3*25W
495*163 90W(90W)
480*150 3*30W
(491) 120W(120W)
3*40W
Gimble 285*110 45W(45W) 15°
Downlight 270*95 3*15W (15D)
(GD3-B) (281) 24°
365*140 75W(75W) (24D)
350*120 3*25W
(361)
470*175 90W(90W)
452*155 3*30W
(471)
