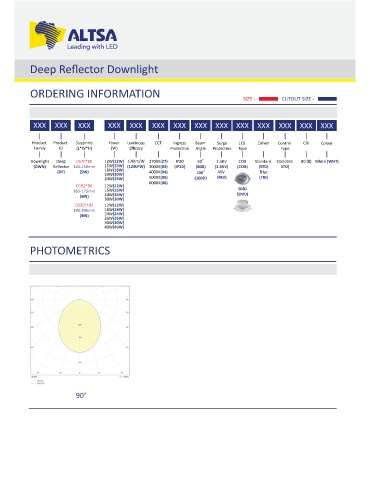

Deep Reflector Downlight

ORDERING INFORMATION
SIZE - CUTOUT SIZE -

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge LED Driver Control CRI Colour
Family ID (L*W*H) (W) Efficacy Protec on Angle Protec on Type Type

Downlight Deep D170*80 12W(12W) 120lm/W 2700K(27) IP20 60° 2.5KV COB Standard Standard 80 (8) White (WHT)
(DWN) Reflector 145-150mm 15W(15W) (120LPW) 3000K(03) (IP20) (60D) (2.5KV) (COB) (STD) STD)
(DF) (5IN) 18W(18W) 4000K(04) 100° 4KV Triac
20W(20W)
24W(24W) 5000K(05) (100D) (4KV) (TRI)
6000K(06)
D192*90 12W(12W)
165-175mm 16W(16W) SMD
(6IN) 24W(24W) (SMD)
30W(30W)
D230*102 12W(12W)
190-205mm 18W(18W)
(8IN) 24W(24W)
26W(26W)
30W(30W)
40W(40W)
PHOTOMETRICS

90°
