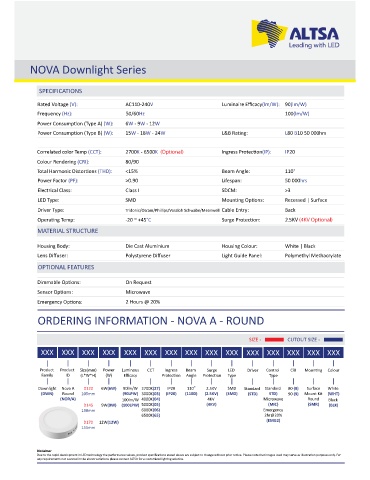

Page 69 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

NOVA Downlight Series

SPECIFICATIONS

Rated Voltage (V): AC110-240V Luminaire Efficacy(lm/W): 90(lm/W)
Frequency (Hz): 50/60Hz 100(lm/W)
Power Consump on (Type A) (W): 6W - 9W - 12W
Power Consump on (Type B) (W): 15W - 18W - 24W L&B Ra ng: L80 B10 50 000hrs

Correlated color Temp (CCT): 2700K - 6500K Ingress Protec on(IP): IP20
Colour Rendering (CRI): 80/90
Total Harmonic Distor ons (THD): <15% Beam Angle: 110°
Power Factor (PF): >0.90 Lifespan: 50 000hrs
Electrical Class: Class I SDCM: >3
LED Type: SMD Moun ng Op ons: Recessed | Surface

Driver Type: Tridonic/Osram/Phillips/Vossloh Schwabe/Meanwell Cable Entry: Back
Opera ng Temp: -20 ~ +45°C Surge Protec on:
MATERIAL STRUCTURE

Housing Body: Die Cast Aluminium Housing Colour: White | Black
Lens Diffuser: Polystyrene Diffuser Light Guide Panel: Polymethyl Methacrylate
OPTIONAL FEATURES

Dimmable Op ons: On Request
Sensor Op ons: Microwave
Emergency Op ons: 2 Hours @ 20%
ORDERING INFORMATION - NOVA A - ROUND

SIZE - CUTOUT SIZE -

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge LED Driver Control CRI Moun ng Colour
Family ID (L*W*H) (W) Efficacy Protec on Angle Protec on Type Type

Downlight Nova A D120 6W(6W) 90lm/W 2700K(27) IP20 110° 2.5KV SMD Standard Standard 80 (8) Surface White
(DWN) Round 105mm (90LPW) 3000K(03) (IP20) (110D) (2.5KV) (SMD) (STD) STD) 90 (9) Mount Kit (WHT)
(NOR/A) 100lm/W 4000K(04) 4KV Microwave Round Black
D145 9W(9W) (100LPW) 5000K(05) (4KV) (MIC) (SMR) (BLK)
130mm 6000K(06) Emergency
6500K(65) 2hr@20%
D170 12W(12W) (EMG2)
155mm

Disclaimer
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
