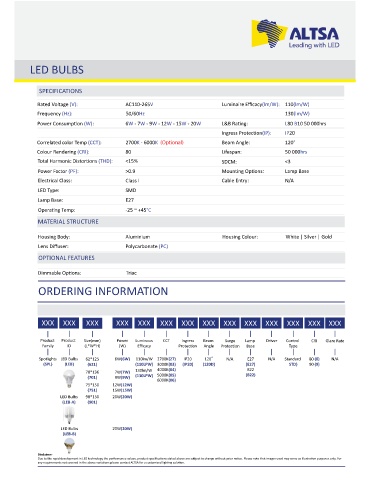

Page 90 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

LED BULBS

SPECIFICATIONS

Rated Voltage (V): AC110-265V Luminaire Efficacy(lm/W): 110(lm/W)
Frequency (Hz): 50/60Hz 130(lm/W)
Power Consump on (W): 6W - 7W - 9W - 12W - 15W - 20W L&B Ra ng: L80 B10 50 000hrs
Ingress Protec on(IP): IP20
Correlated color Temp (CCT): 2700K - 6000K Beam Angle: 120°
Colour Rendering (CRI): 80 Lifespan: 50 000hrs
Total Harmonic Distor ons (THD): <15% SDCM: <3

Power Factor (PF): >0.9 Moun ng Op ons: Lamp Base
Electrical Class: Class I Cable Entry: N/A
LED Type: SMD
Lamp Base: E27

Opera ng Temp: -25 ~ +45°C
MATERIAL STRUCTURE

Housing Body: Aluminium Housing Colour: White | Silver | Gold
Lens Diffuser: Polycarbonate (PC)
OPTIONAL FEATURES

Dimmable Op ons: Triac
ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Lamp Driver Control CRI Glare Rate
Family ID (L*W*H) (W) Efficacy Protec on Angle Protec on Base Type

Spotlights LED Bulbs 62*125 6W(6W) 110lm/W 2700K(27) IP20 120° N/A E27 N/A Standard 80 (8) N/A
(SPL) (LEB) (621) (110LPW) 3000K(03) (IP20) (120D) (E27) STD) 90 (9)
70*136 7W(7W) 130lm/W 4000K(04) B22
(701) 9W(9W) (130LPW) 5000K(05) (B22)
6000K(06)
75*150 12W(12W)
(751) 15W(15W)
LED Bulbs 90*150 20W(20W)
(LEB-A) (901)

LED Bulbs 20W(20W)
(LEB-B)

Disclaimer
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
