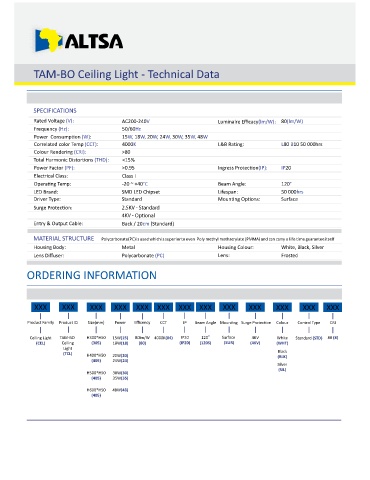

TAM-BO Ceiling Light - Technical Data

SPECIFICATIONS
Rated Voltage (V): AC200-240V Luminaire Efficacy(lm/W): 80(lm/W)
Frequency (Hz): 50/60Hz
Power Consump on (W): 15W, 18W, 20W, 24W, 30W, 35W, 48W
Correlated color Temp (CCT): 4000K L&B Ra ng: L80 B10 50 000hrs
Colour Rendering (CRI): >80
Total Harmonic Distor ons (THD): <15%
Power Factor (PF): >0.95 Ingress Protec on(IP): IP20
Electrical Class: Class I
Opera ng Temp: -20 ~ +40°C Beam Angle: 120°
LED Brand: SMD LED Chipset Lifespan: 50 000hrs
Driver Type: Standard Moun ng Op ons: Surface
Surge Protec on:

Entry & Output Cable: Back / 20cm (Standard)

MATERIAL STRUCTURE Polycarbonate(PC)isusedwhichissuperiortoeven Poly methyl methacrylate (PMMA)and can carry a life me guaranteeitself
Housing Body: Metal Housing Colour: White, Black, Silver
Lens Diffuser: Polycarbonate (PC) Lens: Frosted

ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Family Product ID Size(mm) Power Efficency CCT IP Beam Angle Moun ng Surge Protec on Colour Control Type CRI

Ceiling Light TAM-BO H300*H50 15W(15) 80lm/W 4000K(04) IP20 120° Surface 4KV White Standard (STD) 80 (8)
(CEL) Ceiling (305) 18W(18) (80) (IP20) (120S) (SUR) (4KV) (WHT)
Light
(TCL) H400*H50 20W(20) Black
(BLK)
(405) 24W(24)
Silver
(SIL)
H500*H50 30W(30)
(405) 35W(35)
H600*H50 48W(48)
(405)
