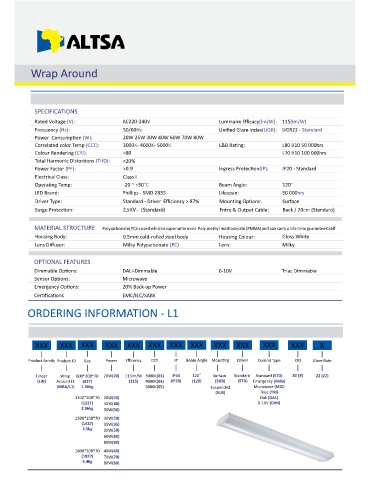

Page 131 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

Wrap Around

SPECIFICATIONS
Rated Voltage (V): AC220-240V Luminaire Efficacy(lm/W): 115(lm/W)
Frequency (Hz): 50/60Hz Unified Glare Index(UGR): UGR22 - Standard
Power Consump on (W): 20W 25W 30W 40W 60W 70W 80W
Correlated color Temp (CCT): 3000K- 4000K- 5000K L&B Ra ng: L80 B10 50 000hrs
Colour Rendering (CRI): >80 L70 B10 100 000hrs
Total Harmonic Distor ons (THD): <20%
Power Factor (PF): >0.9 Ingress Protec on(IP): IP20 - Standard
Electrical Class: Class I
Opera ng Temp: -20 ~ +50°C Beam Angle: 120°
LED Brand: Phillips - SMD 2835 Lifespan: 50 000hrs
Driver Type: Standard - Driver Efficiency > 87% Moun ng Op ons: Surface
Surge Protec on: Entry & Output Cable: Back / 20cm (Standard)

MATERIAL STRUCTURE Polycarbonate(PC)isusedwhichissuperiortoeven Poly methyl methacrylate (PMMA)and can carry a life me guaranteeitself
Housing Body: 0.5mm cold-rolled steel body Housing Colour: Gloss White
Lens Diffuser: Milky Polycarbonate (PC) Lens: Milky

OPTIONAL FEATURES
Dimmable Op ons: DALI-Dimmable 0-10V Triac Dimmable
Sensor Op ons: Microwave
Emergency Op ons: 20% Back-up Power
Cer fica ons EMC/IEC/SABS

ORDERING INFORMATION - L1

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX X

Product Family Product ID Size Power Efficency CCT IP Beam Angle Moun ng Driver Control Type CRI Glare Rate

Linear Wrap 600*208*70 20W(20) 115lm/W 3000K(03) IP20 120° Surface Standard Standard (STD) 80 (8) 22 (22)
(LIN) Around L1 (627) (115) 4000K(04) (IP20) (120) (SUR) (STD) Emergency (EMG)
(WRA/L1) 1.56kg 5000K(05) Suspended Microwave (MIC)
(SUS) Triac (TRI)
1200*208*70 20W(20) Dali (DAL)
(1227) 40W(40) 0-10V (DIM)
2.96kg 50W(50)
1500*208*70 30W(30)
(1527) 35W(35)
3.5kg 50W(50)
60W(60)
80W(80)
1800*208*70 40W(40)
(1827) 70W(70)
5.4kg 80W(80)
