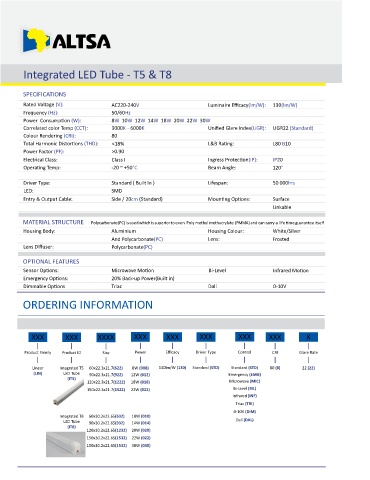

Page 135 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

Integrated LED Tube - T5 & T8

SPECIFICATIONS
Rated Voltage (V): AC220-240V Luminaire Efficacy(lm/W): 130(lm/W)
Frequency (Hz): 50/60Hz
Power Consump on (W): 8W 10W 12W 14W 18W 20W 22W 30W
Correlated color Temp (CCT): 3000K - 6000K Unified Glare Index(UGR): UGR22 (Standard)
Colour Rendering (CRI): 80
Total Harmonic Distor ons (THD): <18% L&B Ra ng: L80 B10
Power Factor (PF): >0.90
Electrical Class: Class I Ingress Protec on(IP): IP20
Opera ng Temp: -20 ~ +50°C Beam Angle: 120°

Driver Type: Standard ( Built In ) Lifespan: 50 000hrs
LED: SMD
Entry & Output Cable: Side / 20cm (Standard) Moun ng Op ons: Surface
Linkable

MATERIAL STRUCTURE Polycarbonate(PC)isusedwhichissuperiortoeven Poly methyl methacrylate (PMMA)and can carry a life me guaranteeitself
Housing Body: Aluminium Housing Colour: White/Silver
And Polycarbonate(PC) Lens: Frosted
Lens Diffuser: Polycarbonate(PC)

OPTIONAL FEATURES
Sensor Op ons: Microwave Mo on Bi-Level Infrared Mo on
Emergency Op ons: 20% Back-up Power(Built in)
Dimmable Op ons Triac Dali 0-10V

ORDERING INFORMATION

XXX XXX XXXX XXX XXX XXX XXX XXX X

Product Family Product ID Size Power Efficacy Driver Type Control CRI Glare Rate

Linear Integrated T5 60x22.3x21.7(622) 8W (008) 130lm/W (130) Standard (STD) Standard (STD) 80 (8) 22 (22)
(LIN) LED Tube 90x22.3x21.7(922) 12W (012) Emergency (EMG)
(IT5)
120x22.3x21.7(1222) 18W (018) Microwave (MIC)
150x22.3x21.7(1522) 22W (022) Bi-Level (BIL)
Infrared (INF)
Triac (TRI)
0-10V (DIM)
Integrated T8 60x30.2x22.65(632) 10W (010)
LED Tube 90x30.2x22.65(932) 14W (014) Dali (DAL)
(IT8)
120x30.2x22.65(1232) 20W (020)
150x30.2x22.65(1532) 22W (022)
150x30.2x22.65(1532) 30W (030)
