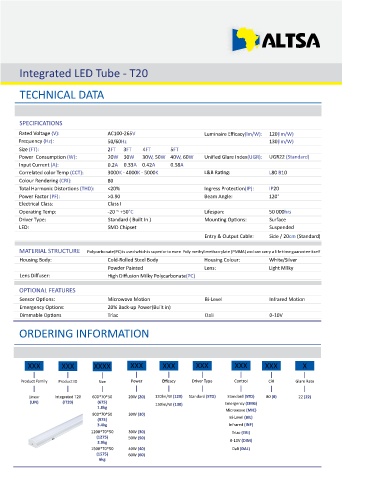

P. 136
Integrated LED Tube - T20
TECHNICAL DATA
SPECIFICATIONS
Rated Voltage (V): AC100-265V Luminaire Efficacy(lm/W): 120(lm/W)
Frequency (Hz): 50/60Hz 130(lm/W)
Size (FT): 2FT 3FT 4FT 5FT
Power Consump on (W): 20W 30W 30W, 50W 40W, 60W Unified Glare Index(UGR): UGR22 (Standard)
Input Current (A): 0.2A 0.33A 0.42A 0.58A
Correlated color Temp (CCT): 3000K - 4000K - 5000K L&B Ra ng: L80 B10
Colour Rendering (CRI): 80
Total Harmonic Distor ons (THD): <20% Ingress Protec on(IP): IP20
Power Factor (PF): >0.90 Beam Angle: 120°
Electrical Class: Class I
Opera ng Temp: -20 ~ +50°C Lifespan: 50 000hrs
Driver Type: Standard ( Built In ) Moun ng Op ons: Surface
LED: SMD Chipset Suspended
Entry & Output Cable: Side / 20cm (Standard)
MATERIAL STRUCTURE Polycarbonate(PC)isusedwhichissuperiortoeven Poly methyl methacrylate (PMMA)and can carry a life me guaranteeitself
Housing Body: Cold-Rolled Steel Body Housing Colour: White/Silver
Powder Painted Lens: Light Milky
Lens Diffuser: High Diffusion Milky Polycarbonate(PC)
OPTIONAL FEATURES
Sensor Op ons: Microwave Mo on Bi-Level Infrared Mo on
Emergency Op ons: 20% Back-up Power(Built in)
Dimmable Op ons Triac Dali 0-10V
ORDERING INFORMATION
XXX XXX XXXX XXX XXX XXX XXX XXX X
Product Family Product ID Size Power Efficacy Driver Type Control CRI Glare Rate
Linear Integrated T20 600*70*50 20W (20) 120lm/W (120) Standard (STD) Standard (STD) 80 (8) 22 (22)
(LIN) (IT20) (675) 130lm/W (130) Emergency (EMG)
1.8kg Microwave (MIC)
900*70*50 30W (30)
(975) Bi-Level (BIL)
3.4kg Infrared (INF)
1200*70*50 30W (30) Triac (TRI)
(1275) 50W (50)
3.9kg 0-10V (DIM)
1500*70*50 40W (40) Dali (DAL)
(1575) 60W (60)
6kg
