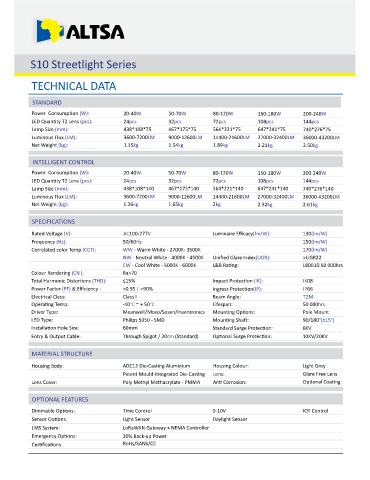

S10 Streetlight Series

TECHNICAL DATA

STANDARD

Power Consump on (W): 20-40W 50-70W 80-120W 150-180W 200-240W
LED Quan ty T2 Lens (pcs): 24pcs 32pcs 72pcs 108pcs 144pcs
Lamp Size (mm): 438*108*75 467*175*75 564*221*75 647*241*75 740*276*75
Luminous Flux (LM): 3600-7200LM 9000-12600LM 14400-21600LM 27000-32400LM 36000-43200LM
Net Weight (kg): 1.15kg 1.54kg 1.89kg 2.21kg 2.50kg

INTELLIGENT CONTROL
Power Consump on (W): 20-40W 50-70W 80-120W 150-180W 200-240W
LED Quan ty T2 Lens (pcs): 24pcs 32pcs 72pcs 108pcs 144pcs
Lamp Size (mm): 438*108*140 467*175*140 564*221*140 647*241*140 740*276*140
Luminous Flux (LM): 3600-7200LM 9000-12600LM 14400-21600LM 27000-32400LM 36000-43200LM
Net Weight (kg): 1.26kg 1.65kg 2kg 2.32kg 2.61kg

SPECIFICATIONS

Rated Voltage (V): AC100-277V Luminaire Efficacy(lm/W): 130(lm/W)
Frequency (Hz): 50/60Hz 150(lm/W)
Correlated color Temp (CCT): WW - Warm White - 2700K- 3500K 170(lm/W)
NW - Neutral White - 4000K - 4500K Unified Glare Index(UGR): >UGR22
CW - Cool White - 5000K - 6000K L&B Ra ng: L80B10 50 000hrs
Colour Rendering (CRI): Ra>70
Total Harmonic Distor ons (THD): ≤15% Impact Protec on (IK): IK08
Power Factor (PF) & Efficiency : >0.95 | >90% Ingress Protec on(IP): IP66
Electrical Class: Class I Beam Angle: T2M
Opera ng Temp: -40°C ~ + 50°C Lifespan: 50 000hrs
Driver Type: Meanwell/Moso/Sosen/Inventronics Moun ng Op ons: Pole Mount
LED Type: Philips 5050 - SMD Moun ng Sha : 90/180°(±15°)
Installa on Hole Size: Standard Surge Protec on: 6KV
Entry & Output Cable: Through Spigot / 20cm (Standard) Op onal Surge Protec on: 10KV/20KV

MATERIAL STRUCTURE

Housing Body: ADC12 Die-Cas ng Aluminium Housing Colour: Light Grey
Patent Mould-Integrated Die-Cas ng Lens: Glare Free Lens
Lens Cover: Poly Methyl Methacrylate - PMMA An Corrosion: Op onal Coa ng

OPTIONAL FEATURES
Dimmable Op ons: Time Control 0-10V IOT Control
Sensor Op ons: Light Sensor Daylight Sensor
LMS System: LoRaWAN Gateway + NEMA Controller
Emergency Op ons: 20% Back-up Power
Cer fica ons RoHs/SANS/CE
