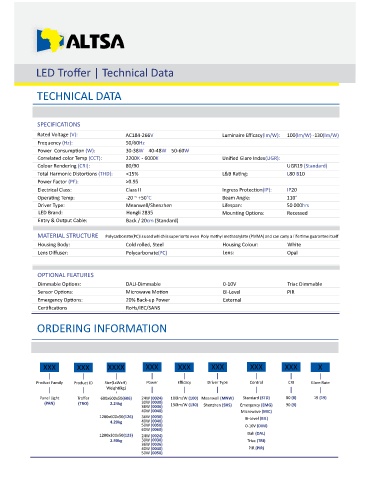

LED Troffer | Technical Data

TECHNICAL DATA

SPECIFICATIONS
Rated Voltage (V): AC184-266V Luminaire Efficacy(lm/W): 100(lm/W) -130(lm/W)
Frequency (Hz): 50/60Hz
Power Consump on (W): 30-38W 40-48W 50-60W
Correlated color Temp (CCT): 2200K - 6000K Unified Glare Index(UGR):
Colour Rendering (CRI): 80/90 UGR19 (Standard)
Total Harmonic Distor ons (THD): <15% L&B Ra ng: L80 B10
Power Factor (PF): >0.95
Electrical Class: Class II Ingress Protec on(IP): IP20
Opera ng Temp: -20 ~ +50°C Beam Angle: 110°
Driver Type: Meanwell/Shenzhen Lifespan: 50 000hrs
LED Brand: Hongli 2835 Moun ng Op ons: Recessed
Entry & Output Cable: Back / 20cm (Standard)

MATERIAL STRUCTURE Polycarbonate(PC)isusedwhichissuperiortoeven Poly methyl methacrylate (PMMA)and can carry a life me guaranteeitself
Housing Body: Cold rolled, Steel Housing Colour: White
Lens Diffuser: Polycarbonate(PC) Lens: Opal

OPTIONAL FEATURES
Dimmable Op ons: DALI-Dimmable 0-10V Triac Dimmable
Sensor Op ons: Microwave Mo on Bi-Level PIR
Emergency Op ons: 20% Back-up Power External
Cer fica ons RoHs/IEC/SANS

ORDERING INFORMATION

XXX XXX XXXX XXX XXX XXX XXX XXX X

Product Family Product ID Size(LxWxH) Power Efficacy Driver Type Control CRI Glare Rate
Weight(kg)
Panel Light Troffer 600x600x50(606) 24W (0024) 100lm/W (100) Meanwell (MNW) Standard (STD) 80 (8) 19 (19)
(PAN) (TRO) 2.24kg 30W (0030) 130lm/W (130) 90 (9)
36W (0036) Shenzhen (SHS) Emergency (EMG)
40W (0040) Microwave (MIC)
1200x600x50(126) 36W (0036) Bi-Level (BIL)
4.20kg 40W (0040)
50W (0050) 0-10V (DIM)
60W (0060)
1200x300x50(123) 24W (0024) Dali (DAL)
2.90kg 30W (0030) Triac (TRI)
36W (0036)
40W (0040) PIR (PIR)
50W (0050)
