Page 51 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr
P. 51

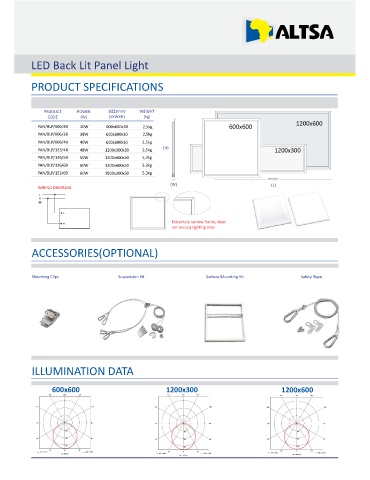

LED Back Lit Panel Light
PRODUCT SPECIFICATIONS
PRODUCT POWER SIZE(mm) WEIGHT
CODE (W) (LXWXH) (kg)
PAN/BLP/606/30 30W 600x600x30 2,5kg
PAN/BLP/606/38 38W 600x600x30 2,5kg
PAN/BLP/606/40 40W 600x600x30 2,5kg
(H)
PAN/BLP/123/48 48W 1200x300x30 2,5kg
PAN/BLP/126/50 50W 1200x600x30 5,3kg
PAN/BLP/126/60 60W 1200x600x30 5.3kg
PAN/BLP/153/60 60W 1500x300x30 5.3kg
(W) (L)
WIRING DIAGRAM
Extremely narrow frame, does
not occupy ligh ng area
ACCESSORIES(OPTIONAL)
Moun ng Clips Suspension Kit Surface Moun ng Kit Safety Rope
ILLUMINATION DATA
600x600 1200x300 1200x600
