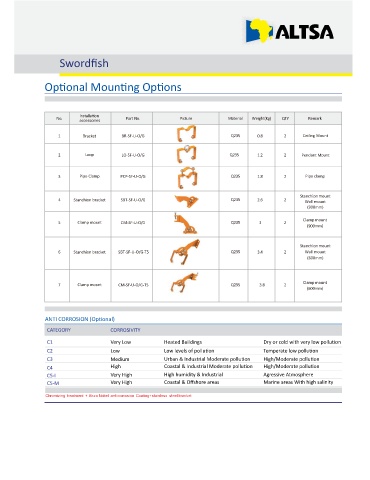

Page 564 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

Swordfish

Op onal Moun ng Op ons

Installa on
No. accessories Part No. Picture Material Weight(Kg) QTY Remark

1 Bracket BR-SF-U-O/G Q235 0.8 2 Ceiling Mount

2 Loop LO-SF-U-O/G Q235 1.2 2 Pendant Mount

3 Pipe Clamp PCP-SF-U-O/G Q235 1.8 2 Pipe clamp

Stanchion mount
4 Stanchion bracket SBT-SF-U-O/G Q235 2.6 2 Wall mount
(900mm)

Clamp mount
5 Clamp mount CM-SF-U-O/G Q235 3 2
(900mm)

Stanchion mount
6 Stanchion bracket SBT-SF-U-O/G-T5 Q235 3.4 2 Wall mount
(600mm)

7 Clamp mount CM-SF-U-O/G-T5 Q235 3.8 2 Clamp mount
(600mm)

ANTI CORROSION (Op onal)
CATEGORY CORROSIVITY

C1 Very Low Heated Buildings Dry or cold with very low pollu on
C2 Low Low levels of pollu on Temperate low pollu on
C3 Medium Urban & Industrial Moderate pollu on High/Moderate pollu on
C4 High Coastal & Industrial Moderate pollu on High/Moderate pollu on
C5-I Very High High humidity & Industrial Agressive Atmosphere
C5-M Very High Coastal & Offshore areas Marine areas With high salinity

Chromizing treatment + Akzo Nobel anti-corrosion Coating+stainless steel bracket
